TE Connectivity / KISSLING DS Sealed Rotary Switches

TE Connectivity’s KISSLING DS Series Sealed Rotary Switches are available in 1- and 2-pole versions with a change-over function. The switches are available in various colors, sealed to level IP67 and IP6K9K, and feature high shock and vibration resistance. TE Connectivity’s KISSLING DS Series Sealed Rotary Switches offer high-performance under demanding environmental conditions.

Features

1- and 2-pole version with change-over function
Various actuator color choices
Seal level IP67 and IP6K9K
High shock and vibration resistance
High-quality silver contacts

Applications

Plant and industrial engineering
Commercial vehicles
Construction vehicles
System start/stop
Control panels
Remote control functions

Specifications

Rated for minimum 100,000 switching cycles under full load
Maximal load 5mA at up to 32V_DC (ohmic load)
10mA at 12V_DC minimum switching current

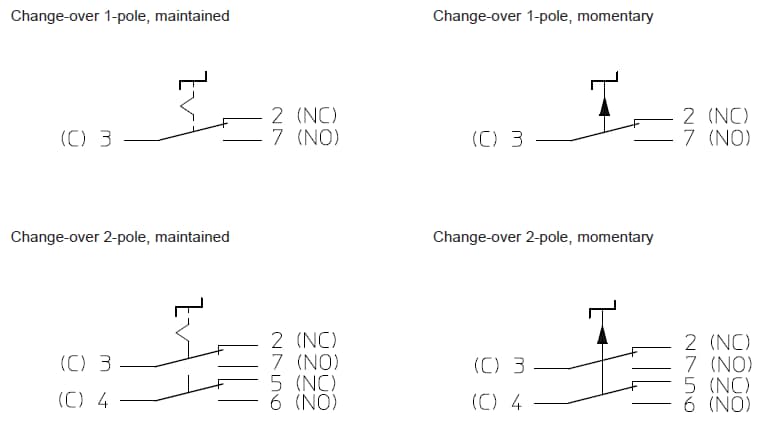

Switching Functions
