TE Connectivity KEB & KES 3-Phase General Purpose EMI Filters

TE Connectivity’s (TE) KEB and KES 3-Phase General Purpose EMI Filters are single-stage devices in 3-wire Delta (KEB) and 4-wire WYE (KES) versions. TE’s KEB and KES 3-Phase General Purpose EMI Filters feature spade, stud, or shockproof terminals with a 1A to 150A current range and 440V_AC / 520V_AC maximum continuous operating range. Applications include industrial automation, HVAC, rectifiers, and computer numerical control (CNC) machines.

Features

Single state, 3-wire Delta (KEB) or 4-wire WYE (KES)
Spade, stud, or shockproof terminals
General-purpose (3-phase with neutral)

Standard attenuation performance
Chassis mounting
UL recognized and CSA certified

Applications

Industrial automation
HVAC

Rectifiers (KEB)
CNC machines (KES)

Specifications

440V_AC / 520V_AC maximum continuous operating voltage
1A to 150A at +40°C current rating

50Hz / 60Hz operating frequency
-25°C to +85°C operating temperature range

Datasheets

KEB Series
KES Series

TE Connectivity KEB & KES 3-Phase General Purpose EMI Filters

Features

Applications

Specifications

Datasheets

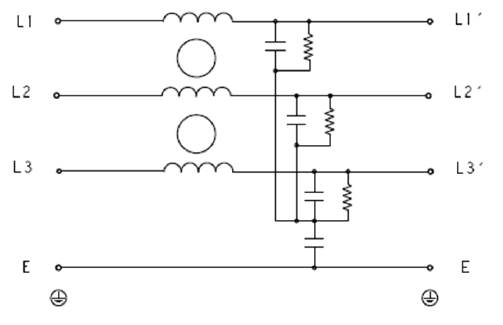

KEB Circuit Diagram

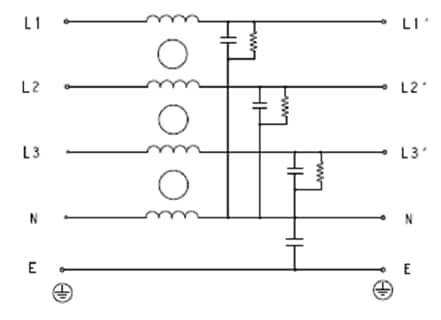

KES Circuit Diagram
