TE Connectivity HPC 200A Connectors

TE Connectivity’s (TE) HPC 200A Connectors help provide a high-safety and reliable Battery Energy Storage System (BESS) solution with a one-pole 200A/1500V high current connector. With one-piece molding contacts, TE’s HPC 200A connectors provide excellent temperature rise control capability. HPC 200A connectors integrate an optional high-performance temperature sensor to enable a 24-hour system safety monitor. The smart locking system with 180° in-line design provides 360° rotation and twelve angles of locking with each 30°. Quick lock and press-to-release functions enable convenient and fast assembly of large-volume connectors on site.

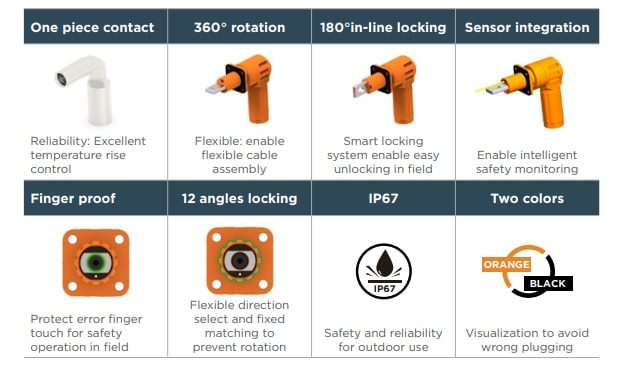

Features

Designed for BESS applications
One-piece contact ensures excellent temperature rise control
360° rotation enables flexible cable assembly
80° in-line locking and smart locking system enable simple field unlocking
Finger-proof feature prevents accidental finger touch for safety operations in the field

Integrated sensor secures intelligent safety monitoring
12x angles locking, flexible direction selection, and fixed matching to prevent rotation
IP67 standard, designed for outdoor safety and dependability
To avoid incorrect plugging, 2x colors and visualization are applied

Specifications

1500V voltage
200A current
Quick lock

PA66 materials
RoHS and REACH compliant
