TE Connectivity GEMnet Differential Connector Systems

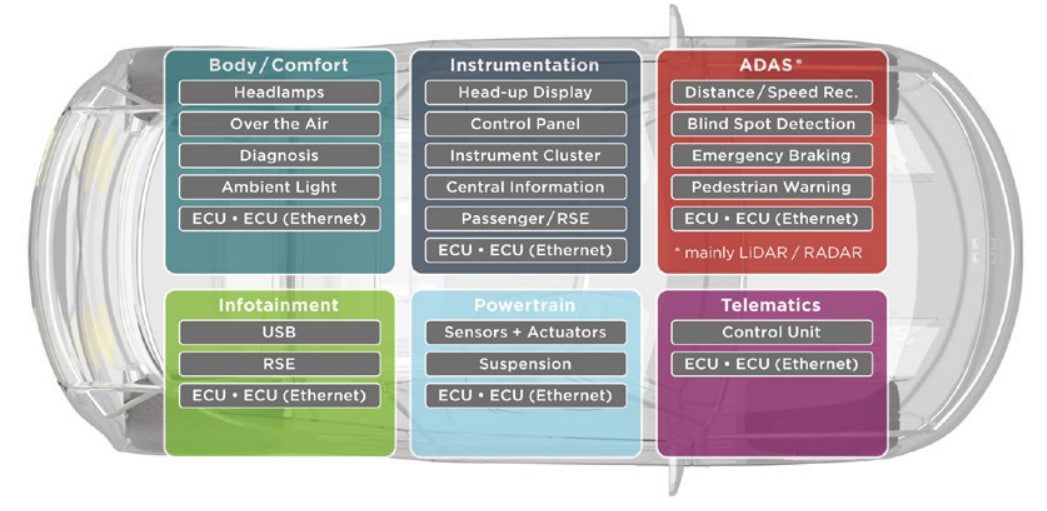

TE Connectivity’s (TE) GEMnet Differential Connector Systems provide bandwidth up to 15GHz and support data transmission up to 56Gbps. These GEMnet connectors support multigigabit Ethernet and SerDes applications and are compatible with the USCAR interface. The systems can be used with various cables, including shielded twisted pairs, unshielded twisted pairs, and high-performance cables. The series provides automotive manufacturers with a high-performance connector system that supports current and future vehicle requirements with automotive-grade robustness. TE GEMnet systems offer a -40°C to +105°C temperature range, ≤60V_DC working voltage, and ≤2A_DC power current. Other features include a robust package, high cable retention force, and a scoop-proof design. The GEMnet connector systems are ideally used in driver assistance systems and high-resolution displays.
