TE Connectivity FP20 Auto Multi-Port Antennas

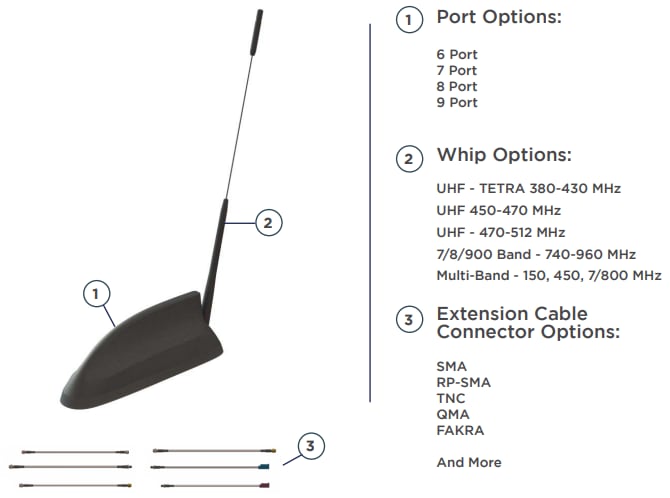

TE Connectivity’s (TE) FP20 Auto Multi-Port Antennas combine 4G, 5G, CBRS, Wi-Fi®, BLUETOOTH®, and GNSS to address all connectivity requirements. These FP20 antennas offer 6-, 7-, 8-, and 9-port options and a range of additional whip antenna and connector options to suit all significant vehicular gateways and routers. The out-of-band rejection filters maintain consistent performance, while the L1 and L5 GNSS attributes improve positioning accuracy and response time. TE FP20 Auto Multi-Port Antennas provide 4G/5G, Wi-Fi, Bluetooth, GNSS L1+L5, and optional VHF, UHF, or 700/800/900MHz coverage from a single antenna.

Features

6-, 7-, 8-, and 9-port options available
Wideband coverage
Increases bandwidth and signal strength
Stylish and aesthetic design
L1 and L5 GNSS for improved positioning accuracy and response times
Coverage of all LTE/5G bands (617MHz to 7125 MHz), Wi-Fi, Bluetooth, and GNSS

Truly global coverage of LTE and 5G sub-6GHz frequencies and bands
Out-of-band rejection filters
Superior gain patterns
Low gain ripple
High gain at horizon
Efficiency over 70%
UV, flammability, humidity, impact, vibration, shock certified

Applications

Vehicular gateways
Vehicle tracking
Public safety

Transportation
After-market fleets
Insurance black boxes
