TE Connectivity AMPSEAL 16 Mini Lever Connectors

TE Connectivity’s (TE) AMPSEAL 16 Mini Lever Connectors for Sealed Applications offer sealed, hybrid power and signal connections, providing vital environmental protection for industries operating in harsh environments. TE AMPSEAL 16 Mini Lever Connectors feature an ergonomic lever lock system that ensures ease of assembly, while the integrated terminal position assurance (TPA) and connector position assurance (CPA) protect against accidental unlocking and ensure precise contact position. The series features 12V and 24V nominal voltage architecture and an operating voltage of 550V_DC. These connectors operate over a -40°C to +125°C operating temperature range and provide an IP6K7 / IP6K9K protection level.

Features

Sealed, hybrid power, and signal connections
Ease of assembly with ergonomic lever-lock mating system

16- and 24-position options
For bulkhead and pass-through applications

Applications

Heavy-duty trucks
Buses
Construction
Specialty vehicles
Agriculture

Lift trucks
Recreational
Marine
Power sports
Power generation

Specifications

12V, 24V nominal voltage architecture
550V_DC operating voltage
UL HB flame retardant

-40°C to +125°C operating temperature range
IP6K7/IP6K9K protection level

Design Features

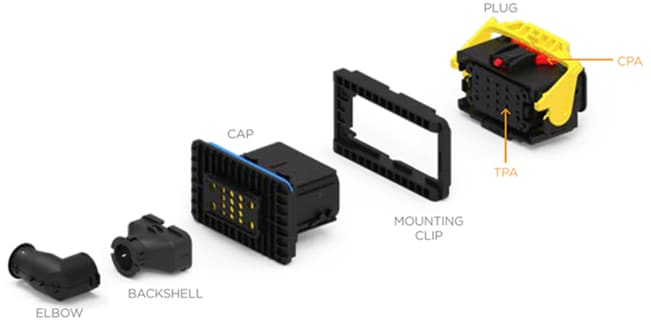

TE Connectivity AMPSEAL 16 Mini Lever Connectors

Associated Tools

• Crimper and Extraction Tools
