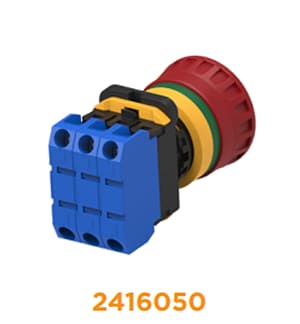

TE Connectivity / Alcoswitch PBES22 Pushbutton 22mm Emergency Stop Switches

TE Connectivity’s (TE) Alcoswitch PBES22 Pushbutton 22mm Emergency Stop Switches feature illuminated and non-illuminated switches with a 22mm mounting hole. When mounted, the switches offer an IP65 rating for the front panel and an IP20 rating for the contact block. TE / Alcoswitch PBES22 Pushbutton 22mm Emergency Stop Switches provide contact blocks with screw terminals, which allow fast and virtually tool-free termination. The switches operate within a 24V to 380V rated voltage range and a -25°C to +70°C temperature range. The PBES22 series switches are UL-, CE-, and TUV-approved and ideal for industrial applications.

Features

IP65-rated front panel
22mm mounting hole
Simple and easy mounting
Contact blocks with screw terminals
Illuminated and non-illuminated styles
Gold plating

LED and incandescent styles
High actuation force
IEC 60947-5-1
IEC 60947-5-5
UL, CE, and TUV agency approval

Specifications

>100,000 mechanical and electrical life operations
0.8mm to 6mm panel thickness (without anti-rotation ring)
1.2mm to 4.5mm (with anti-rotation ring)
2500V_AC max insulation voltage
100MΩ insulation resistance
≤100mΩ contact resistance

600V rated insulation voltage
24V to 380V rated operational voltage
2.5kV rated impulse withstanding voltage
1Ka conditional short-circuit current
-25°C to +70°C operating temperature range
-45°C to +85°C storage temperature range

Switch Styles

Chart - TE Connectivity / Alcoswitch PBES22 Pushbutton 22mm Emergency Stop Switches

TE Connectivity / Alcoswitch PBES22 Pushbutton 22mm Emergency Stop Switches

Features

Specifications

Switch Styles

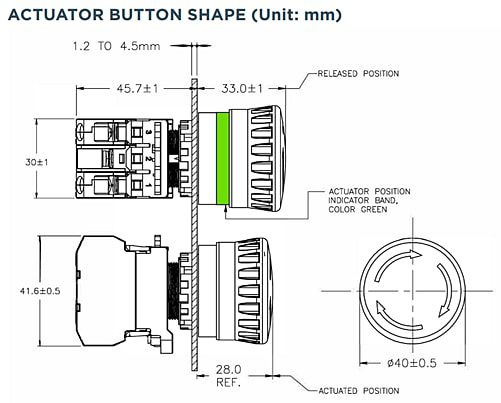

Actuator Button Dimensions
