TDK WCF95 Ferrite Sheet

TDK WCF95 Ferrite Sheet offers a 0.30mm magnetic layer thickness and 85mm x 67mm dimensions. This thick ferrite sheet has Mn-Zn construction and features a pre-cracked structure for mechanical flexibility. The WCF95 sheet offers a 10GΩ surface resistivity rating and an operating temperature range of -40°C to +125°C. TDK WCF95 Ferrite Sheet is suitable for wireless charging with a frequency ranging from 100kHz to 1MHz and protects systems from noise with frequencies of 100kHz to 100MHz.

Features

  • Mn-Zn construction
  • Pre-cracked structure for mechanical flexibility
  • High permeability

Applications

  • Wireless charging (100kHz to 1MHz frequency range)
  • Protects system from noise (100kHz to 100MHz frequency range)

Specifications

  • 0.30mm Magnetic layer thickness
  • 0.37mm Total thickness
  • 85mm x 67mm dimensions
  • 10GΩ Surface resistivity
  • -40°C to +125°C Operating temperature range

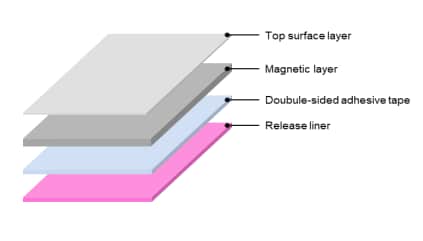

Construction

TDK WCF95 Ferrite Sheet
