TDK VLB Inductors for Power Circuits

TDK VLB Inductors for Power Circuits features a 100kHz measuring frequency, 0.33mΩ DC resistance rating, and -40°C to +125°C temperature range. VLB series Inductors are a power supply circuit for SMD inductors using low-loss ferrite materials. The large current and lower DCR ratings are achieved by the connecting wire-less structure. TDK VLB Inductors for Power Circuits are ideal for servers, BTS, and VRM applications.

Features

This is a power supply circuit for SMD inductors using low-loss ferrite materials
Large current and lower DCR were achieved by the connecting wire-less structure

The stand up structure can be implemented in the lower part, and space saving can be realized
–40°C to +125°C operating temperature range

TDK VLB Inductors for Power Circuits

Features

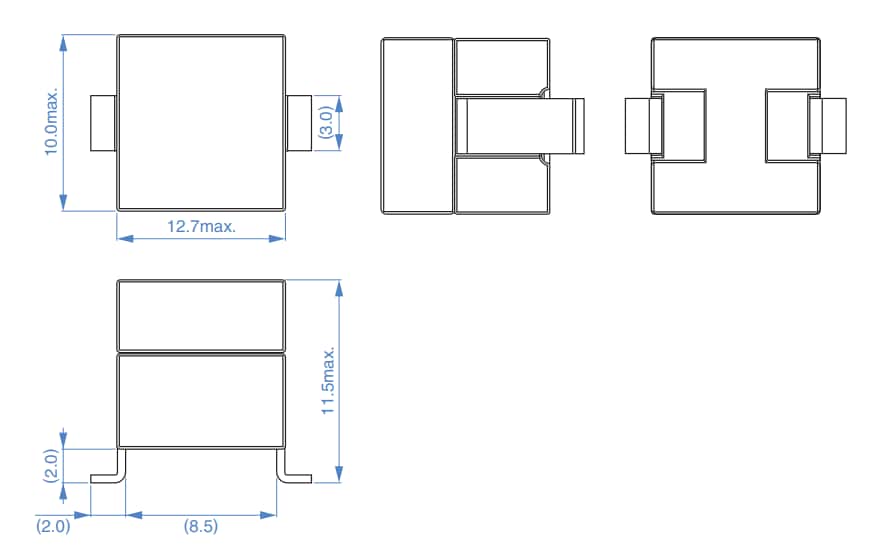

Dimensions (MM)
