TDK TFM160810ALTA Inductor

TDK TFM160810ALTA Inductor offers a ±30% tolerance rating, 10A rated current, and 1.6mm x 0.8mm x 1mm dimensions. This inductor is AEC-Q200 compliant and utilizes a closed magnetic circuit structure, minimizing leakage flux. The TFM160810ALTA inductor combines metal magnetic material with high saturation magnetic flux density, achieving the excellent DC bias characteristics needed for inductors for power circuits. TDK TFM160810ALTA Inductor is suitable for in-vehicle cameras, radars, automotive communication modules, and ADAS ECU applications.

Features

Metal magnetic material
High saturation magnetic flux density
Excellent DC bias characteristics

Excellent mounting stability
Uses closed magnetic circuit structure

Applications

ADAS ECUs
In-Vehicle Cameras
- View cameras
- Sensing cameras

Radars
Meter clusters
Automotive communication

Specifications

±30% tolerance
1mHz measuring frequency
5mΩ typical DC resistance

10A typical rated current
20V maximum rated voltage
1.6mm x 0.8mm x 1mm dimensions

TDK TFM160810ALTA Inductor

Features

Applications

Specifications

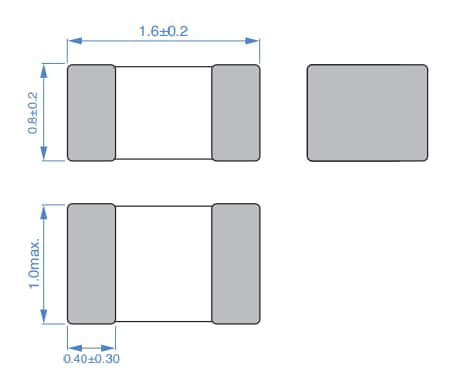

Shape & Dimensions
