TDK-Lambda PYQ50 30W to 50W Single Output DC-DC Converters

TDK-Lambda PYQ50 30W to 50W Single Output DC-DC Converters are quarter-brick footprint, isolated DC-DC converters that operate from an ultra-wide input range of 14V_DC to 160V_DC (12:1) with single output voltages from 5V to 48V. The output voltage can be adjusted between -20% to +10% by using the trim terminal. Output voltage sense lines ensure a stable output voltage even with changing loads. The PYQ50 models feature efficiencies of up to 89%, 3,000VDC I/O isolation, and operate in an ambient temperature range of -40°C to +100°C. The units are potted to provide a high resistance to shock and vibration. Certified according to the 62368-1 safety standards and with additional circuits, the PYQ50 components are also tested according to the EN 50155 railroad standard for electronic equipment in railroad vehicles.

Features

Quarter-brick footprint
Wide 14V_DC to 160V_DC input range (12:1)
Supports the majority of railway DC input voltages
Potted plastic case

Certified to IEC 62368-1, tested according to EN 50155
High resistance to shock and vibration
3000V_DC I/O isolation
Single output

Applications

Industrial
Test
Communications

Broadcast
Railway

Specifications

Input
- 14V to 160V range
- 200V_DC surge voltage, 100ms maximum
- 12V_DC typical shutdown voltage
- 25ms start-up time
Output
- 5V, 12V, 24V, or 48V options
- ±1% voltage tolerance
- 215kHz to 265kHz switching frequency range
- ±0.2% line/load regulation
- 100mVp-p ripple and noise
- ±0.02%/°C temperature coefficient
- ±10% remote sense
1.05A to 6A maximum current range
30W or 50W maximum power options
5mA or 8mA no-load input current options

81% to 89% efficiency range at 72/110V_DC
680µF to 10,000µF maximum load capacitance range
Withstanding voltage for 1 minute
- 3000V_DC input-to-output
- 2500V_DC input-to-case
- 500V_AC output-to-case
Isolation capacitance
- 1000pF input-to-output
- 1500pF input-to-base plate
-40°C to +100°C operating temperature range
57.9mm x 36.8mm x 12.7mm in dimension
Plastic case material
Aluminum base plate
791,000 hours to 810,000 hours MTBF
3-year warranty

TDK-Lambda PYQ50 30W to 50W Single Output DC-DC Converters

Features

Applications

Specifications

Videos

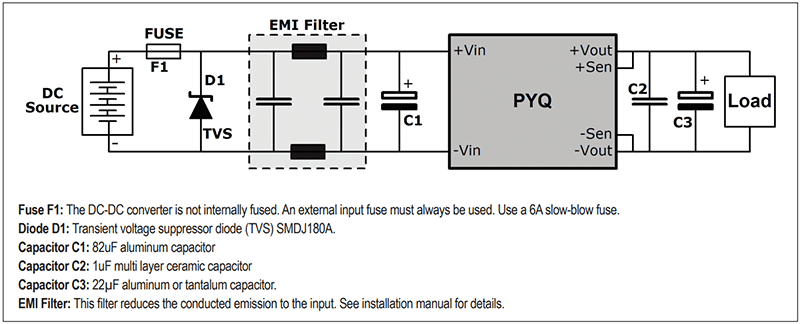

Recommended Wiring Scheme
