TDK ACT32P Common Mode Filter

TDK ACT32P Common Mode Filter is AEC-Q200 compliant and offers an operating temperature range from -55°C to +150°C. This filter is ideal for automotive power lines and power CMC applications. It has 1kΩ typical common-mode impedance at 100MHz, 5.9μH common-mode inductance, 800mA rated current, and 80V_DC rated voltage. Other features include 10MΩ minimum insulation resistance and 150mΩ maximum DC resistance. TDK ACT32P Common Mode Filter is halogen and lead free as well as RoHS compliant.

Features

Common mode filters for automotive power lines, compatible with an operating temperature range of –55 to +150°C
Compliant with AEC-Q200

Ideal for power CMC applications
Halogen and lead free
RoHS compliant

Specifications

-55°C to +150°C operating temperature range
1kΩ typical common-mode impedance at 100MHz
750 minimum tolerance
5.9μH common-mode inductance

800mA rated current
80V_DC rated voltage
10MΩ minimum insulation resistance
150mΩ maximum DC resistance

TDK ACT32P Common Mode Filter

Features

Specifications

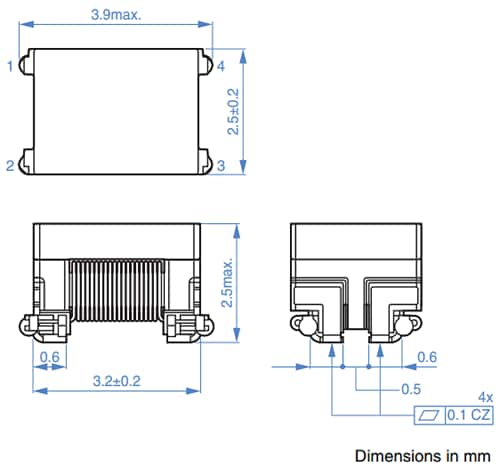

Dimensions
