TDK μPOL™ DC-DC Power Modules

TDK μPOL™ DC-DC Power Modules are compact and highly integrated point-of-load converters. These modules are ideal for powering CPUs, MCUs, ASICs, FPGAs, DSPs, and other advanced digital logic devices. The µPOL high current density power modules provide the high performance, fast load transient response, and high accuracy voltage regulation needed by these devices. These Micro-POL converters feature a chip-embedded power IC in a thermally enhanced semiconductor-embedded-in-substrate package.

TDK µPOL Evaluation Boards are designed for the evaluation of µPOL products. The evaluation board features a four-layer PCB constructed of FR4 glass-reinforced epoxy laminate material. The major power components, including the µPOL, are mounted on the top side of the TDK µPOL evaluation board. An optional I²C programming dongle is also available.

Features

μPOL technology includes an inductor in a thermally enhanced package
Small sizes
- 3.3mm x 3.3mm x 1.5mm for the FS1403, FS1404, FS1406, and FS1703
- 5.8mm x 4.9mm x 1.6mm for the FS1412
Plug and play (no external compensation required)
I²C serial bus digital communication
Open-drain power-good indicator
Built-in protection features
Advanced ultra-low-profile packaging and 3D technology for energy-efficient, next-generation designs

Wide 2.5V to 16V input voltage range
High-density solution for space-constrained applications requiring a low-profile power source
Scalable and highly configurable with multi-time programmable memory, offering a wide range of flexibility using digital communication (I²C and PMBUS)
Output current rated at 12A, with 50% less required capacitance than existing products
Suitable for a junction temperature range from -40°C to +125°C
EV1412-0600-A evaluation board is available
Lead and halogen free
RoHS/WEEE, REACH and RoHS 6 compliant

Applications

Servers
- Mainstream
- Rack and blade
- Microservers
- HW accelerators
- Machine/deep learning
- Edge
Network communications and telecommunications
- Ethernet switches and routers
- 5G
- MIMO
- Video headends
Instrumentation

Network storage (enterprise SSDs/storage area networks)
Industrial, medical, and automotive
- Embedded processing
  - FPGAs
  - SoCs
  - DSPs
- AI inference
- Autonomous
- Imaging
- Radars
- Security
- Machines

Specifications

600mV to 2.64V output range
2.5V to 16V input range
3A to 12A output current range

1MHz switching frequency
Single output
-40°C to +125°C temperature range

Micro POL Selection Guide

Videos

Performance Data

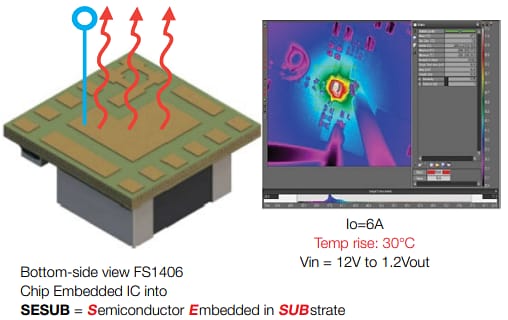

Thermal Path

Design Guides

FS14xx
- 3DCG FBX File
- Altium Final 29 (Zip)
- Altium PAGE1 (Zip)
- Altium PAGE2 (Zip)
- Altium POWER STRIP DESIGN WITH ORIGINAL (Zip)
- FS14xx OrCAD Layout (Zip)
- FS14xx OrCAD Schematic (Zip)
- Mentor PADs POWER MICRO BOARD (Zip)
- OrCAD-Allegro POWER STRIP DESIGN WITH ORIGINAL SYN NETLIST.DSN (Zip)
- OrCAD-Allegro Power Strip Final (Zip)

FS1412
- Altium final (Zip)
- Altium FS1412 Evalboard RevA (Zip)
- Altium PAGE1 (Zip)
- Mentor PADs FINAL r3b
- Mentor PADs FS1412 Evalboard RevA
- OrCAD-Allegro FINAL
- OrCAD-Allegro FS1412 Evalboard RevA

Sample Kit

FS1406-KIT μPOL DC-DC Converter Sample Kit
Sample Kit Datasheet

Fast Design

View Full Infographic
