Taoglas Wideband 90° Hinged Terminal Antennas

Taoglas Wideband 90° Hinged Terminal Antennas are 5G/4G monopole antennas in a low-profile housing that function on worldwide cellular bands. The antennas are utilized for modules and devices that require high efficiency and high peak gain. Taoglas Wideband 90° Hinged Terminal Antennas feature an SMA(M) connector with an innovative hinge design for easy, efficient mounting. The antennas are IP67-rated against water ingress, which is ideal for rugged, outdoor conditions. The hinged terminal antennas are RoHS/REACH compliant and ideal for gateways, routers, industrial IoT, exterior cameras, smart homes, and wastewater monitoring applications.

Features

Low-profile housing
Wall mounting capability
Worldwide 5G/4G bands, including 3G and 2G
IP67-rated waterproof enclosure

SMA(M) connector
Custom cables and connectors available
12.7mm x 203mm dimensions
RoHS/REACH compliant

Applications

Gateways
Routers
Industrial IoT
Exterior cameras

Smart homes
Vending machines
Wastewater monitoring

Specifications

617MHz to 7125MHz frequency range
37.2% to 75.3% efficiency range
Three test set-ups:
- Free space
- 15×9 ground
- 9×15 ground

-1.23dB to -5.38dB average gain
1.39dBi to 5.77dBi peak gain
50Ω impedance rating
Linear polarization
Omnidirectional radiation pattern
-40°C to +85°C operating and storage temperature range

Taoglas Wideband 90° Hinged Terminal Antennas

Features

Applications

Specifications

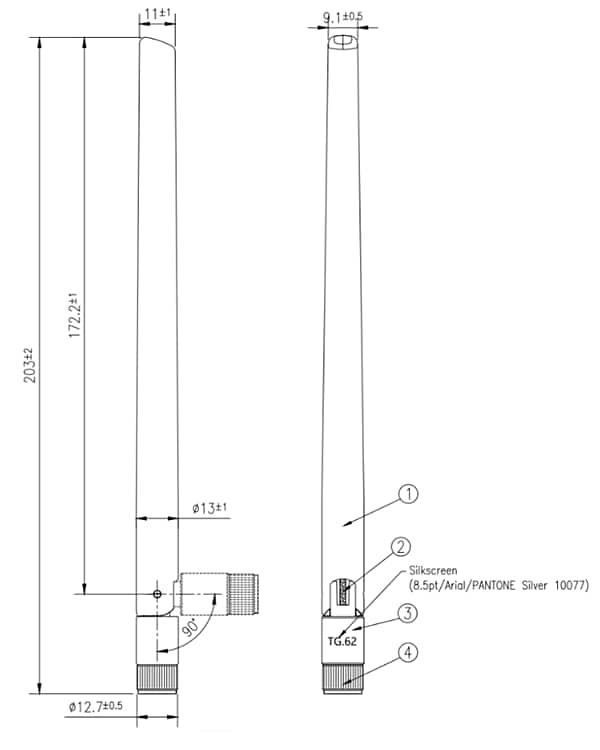

Mechanical Drawing
