Taoglas TFM Series Multiband GNSS Front End Modules

Taoglas TFM Series Multiband GNSS Front End Modules cover L1+B1+G1 / L1 / L2 / L5 for multi-band, multi-constellation high-precision applications. The TFM features a SAW / LNA / SAW / LNA topology in the signal path, preventing unwanted out-of-band interference from overdriving the GNSS LNAs or receivers. This GNSS front end captures the required additional RF circuits in modular form, allowing the user to place the TFM between the GNSS antenna and the GNSS receiver. The integrated pre-filters deliver excellent out-of-band rejection across multiple band configurations and neighboring interference to properly set noise figures. Taoglas TFM modules boast impedance matching, filter efficiency, and low-noise design for easy, drop-in use with any antenna or GNSS receiver.

Features

Ease of integration
Low-noise system design
Dual-gain stage architecture

Low-profile form factor
Accelerated development cycles

Specifications

TFM.100A/TFM.120A
- <3.25dB in low bands and <3.0dB in high bands low noise figure
TFM.100B
- <3.0dB in all bands low noise figure
TFM.110A
- <3.5dB in low bands and <4.0dB in high bands low noise figure
Two-stage LNA providing >25dB gain across all bands

V_IN = +1.8 to +5.5VDC
Easy to integrate surface-mount
RoHS and Reach Compliant
Dimensions
- TFM.100A 20mm x 18mm x 2.76mm
- TFM.100B 20mm x 18mm
- TFM.110A 15mm x 15mm x 2.7mm
- TFM.120A 25mm x 25mm x 4.75mm

Taoglas TFM Series Multiband GNSS Front End Modules

Features

Specifications

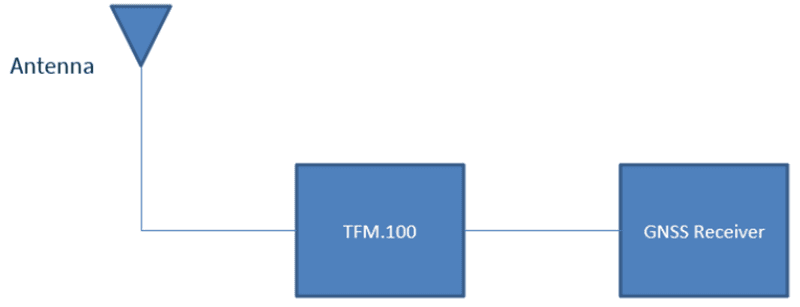

Application Circuit
