Taoglas Synergy XR 9-in-1 Antennas

Taoglas Synergy X 9-in-1 Antennas are an external permanent mount, which combines an active GNSS with four 5G/4G and four dual-band Wi-Fi antennas. Synergy X features an M22-threaded boss and 3M adhesive for surface mounting. The Synergy X is IP67-rated from water ingress and RoHS/REACH compliant. Taoglas Synergy X 9-in-1 Antennas are designed for high-precision applications, including autonomous driving, robotics, precision agriculture, inventory management, and telematics.

Features

Low-profile permanent mount enclosure
Four 5G/4G MIMO 600-6000MHz antennas
Four Wi-Fi MIMO 2.4/5.8/7.125 GHz antennas
One active GPS GNSS L1/G1/B1

IP67-rated waterproof enclosure
Staggered RG-174 with SMA(M)/RP-SMA(M) connectors
RoHS/REACH compliant

Applications

Autonomous driving
Precision positioning
Robotics
Precision agriculture

Inventory management
Container tracking
Asset tracking
Telematics

Specifications

1575.42MHz to 1602MHz frequency range
36.87% to 43.67% passive antenna efficiency
2.45dBic to 3.79dBic passive antenna gain at Zenith
8ns to 4ns group delay variation
1:1 max VSWR

RHCP polarization
50Ω impedance rating
-40°C to +85°C operating temperature range
161.3mm x 67mm dimensions
535g weight

Mechanical Drawings

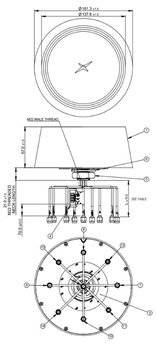

Mechanical Drawing - Taoglas Synergy XR 9-in-1 Antennas
