Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas

Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas are compact cellular antennas designed for IoT devices. The antennas provide 5G/4G/LTE wideband coverage, including the 600MHz to 700Mhz bands. Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas feature easy integration into standard SMD technologies and matching circuits for each deployment: North America (NA), European Union (EMEA), and World Wide (WW). The antennas are made of FR4 material and are RoHS/REACH compliant. The PCS.55.M antennas are ideal for handheld IoT devices, handsets, tablets, and compact asset-tracking applications.

Features

Small form factor
SMD dielectric antenna
600MHz to 3000MHz 5G/4G/LTE bands
GPS/GLONASS/Galileo/BeiDou

Available in North America (NA), European Union (EMEA), and World Wide (WW) configurations
27mm x 10mm x 1.6mm dimensions
RoHS/REACH compliant

Applications

Handheld IoT devices
Handsets

Tablets
Compact asset trackers

Specifications

617MHz to 2690MHz frequency range
-10.4dB to -3.2dB average gain range
-7.3dBi to 3.7dBi peak gain range
-8.5dB to -1.8dB return loss range
9.1% to 47.4% efficiency
50Ω impedance

-40°C to +85°C operating and storage temperature range
Omnidirectional radiation pattern
Linear polarization
FR4 material
0.9g weight

Mechanical Drawings

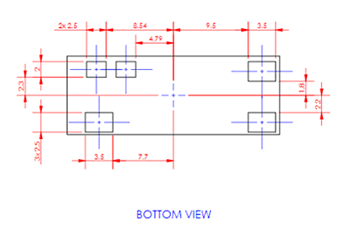

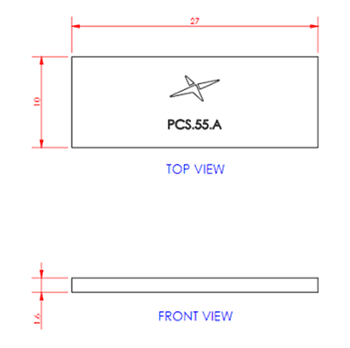

Mechanical Drawing - Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas

Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas

Features

Applications

Specifications

Mechanical Drawings

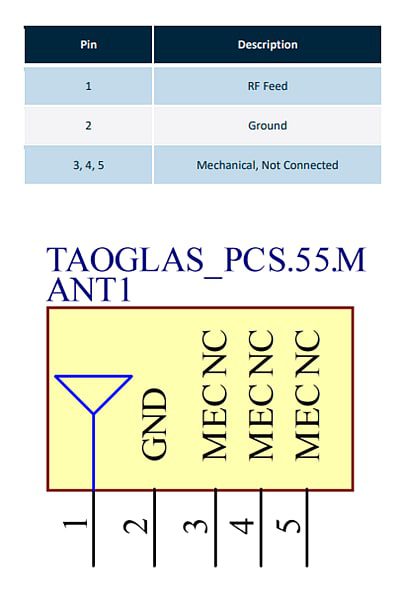

Schematic
