Taoglas PCS.25.A Wi-Fi® 2.4GHz FR4 Chip Antennas

Taoglas PCS.25.A Wi-Fi® 2.4GHz FR4 Chip Antennas are SMD FR4 antennas designed for various Wi-Fi and BLUETOOTH® applications. The antennas feature a compact 15mm x 3mm x 3mm size that can operate with and without clearance. Taoglas PCS.25.A Wi-Fi® 2.4GHz FR4 Chip Antennas function on a 2400MHz to 2500MHz frequency range and a 50Ω impedance rating. The antennas are RoHS/REACH compliant and ideal for wearables, keyless entry, handheld devices, and smart healthcare applications.

Features

Wi-Fi/BLUETOOTH
FR4 material
SMD antenna

15mm x 3mm x 3mm dimensions
RoHS/REACH compliant

Applications

Wearables
Keyless entry

Handheld devices
Smart healthcare

Specifications

2400MHz to 2500MHz frequency range
52% efficiency with clearance
31% efficiency without clearance
-2.9dB average gain with clearance
-5.1dB average gain without clearance
2dBi peak gain with clearance
0.1dBi peak gain without clearance

10W max input power
50Ω impedance rating
Linear polarization
Omnidirectional radiation pattern
-40°C to +85°C operating temperature range
2g weight

Taoglas PCS.25.A Wi-Fi® 2.4GHz FR4 Chip Antennas

Features

Applications

Specifications

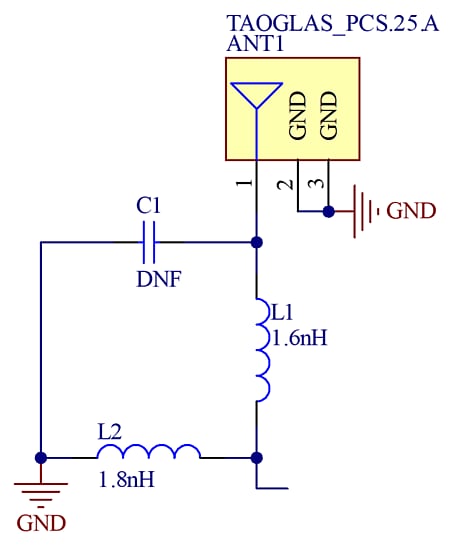

Application Circuit Diagram
