Taoglas Multi-GNSS L1/L5 Patch Antennas

Taoglas Multi-GNSS L1/L5 Patch Antennas are compact ceramic patch antennas, designed to optimize positional accuracy and positioning. The antenna’s 4mm height allows it to be used in applications with extreme height restraints. Taoglas Multi-GNSS L1/L5 Patch Antennas cover BeiDou (B1/B2a), GPS/QZSS (L1/L5), GLONASS (G1), Galileo (E1/E5a) bands. The antennas function with RHCP polarization and a directional radiation pattern on a dual-feed solder mount configuration. The antennas are ideal for wearables, compact asset trackers, precision agriculture, navigation, industrial tracking, and autonomous vehicle applications.

Features

  • Compact footprint
  • 35mm x 35mm x 4mm dimensions
  • Dual-feed solder mount configuration
  • RoHS/REACH compliant
  • Bands covered:
    • BeiDou (B1/B2a)
    • GPS/QZSS (L1/L5)
    • GLONASS (G1)
    • Galileo (E1/E5a)

Applications

  • Wearables
  • Compact asset trackers
  • Precision agriculture
  • Navigation
  • Industrial tracking
  • Autonomous vehicles

Specifications

  • 1166MHz to 1610MHz GNSS frequency range
  • 41.7% to 54.9% efficiency
  • -3.8dB to -2.61dB average gain
  • 2.07dBi to 2.61dBi peak gain
  • 50Ω impedance
  • RHCP polarization
  • -40°C to +85°C operating temperature range
  • Directional radiation pattern
  • Ceramic material
  • SMD connector
  • 16g weight

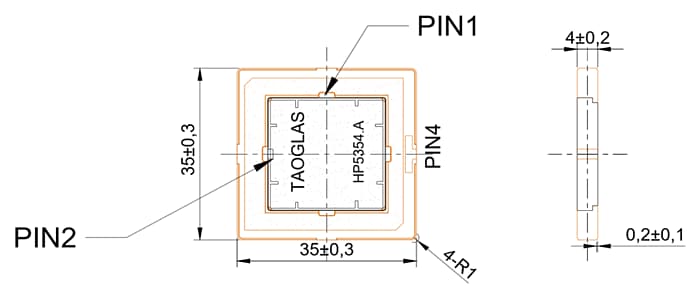

Mechanical Drawing

Mechanical Drawing - Taoglas Multi-GNSS L1/L5 Patch Antennas
