Taoglas GW IP67 Wi-Fi® 2.4/5.8/7.125GHz Terminal Antennas

Taoglas GW IP67 Wi-Fi® 2.4GHz/5.8GHz/7.125GHz Terminal Antennas are terminal-mount dipole antennas, ideal for BLUETOOTH®, BLE, ZigBee®, Wi-Fi 6/7, and Wireless LAN connections. The antennas are designed with a robust IP67-rated enclosure, which can be mounted indoors and outdoors with the hinged RP-SMA(M) connector. Taoglas GW IP67 Wi-Fi 2.4GHz/5.8GHz/7.125GHz Terminal Antennas feature an omnidirectional radiation pattern, allowing for a high efficiency and gain rating on all Wi-Fi bands. The GW series is RoHS/REACH compliant and ideal for smart homes, gateways, routers, and connected agriculture applications.

Features

2.4GHz/5.8GHz/7.125GHz band operation
Wi-Fi 6/7 compatible
IP67 weatherproof and outdoor rating

High efficiency
Hinged RP-SMA (M) connector
RoHS/REACH compliant

Applications

Smart home
Gateways

Routers
Connected agriculture

Specifications

GW.23.A151
- 2.4GHz band operation
- IP67 rated enclosure
- 8.9mm x 21mm dimensions
GW.29.A153
- 2400MHz to 2500MHz frequency range
- 83.5% efficiency (free space)
- -0.78dB average gain (free space)
- 2.32dBi peak gain (free space)
GW.49.A153
- 2.4GHz
  - 2400MHz to 2500MHz frequency range
  - 93% efficiency (free space)
  - -0.31dB average gain (free space)
  - 2.58dBi peak gain (free space)
- 5.8GHz
  - 4900MHz to 5850MHZ frequency range
  - 72.1% efficiency (free space)
  - -1.42dB average gain (free space)
  - 3.8dBi peak gain (free space)
- 7.125GHz
  - 5925MHz to 7125MHz frequency range
  - 58.2% efficiency (free space)
  - -1.83dB average gain (free space)
  - 1.54dBi peak gain (free space)

GW.52.A153
- 2.4GHz
  - 2400MHz to 2500MHz frequency range
  - 47.8% efficiency (free space)
  - -3.21dB average gain (free space)
  - 2.93dBi peak gain (free space)
- 5.8GHz
  - 4900MHz to 5850MHZ frequency range
  - 88% efficiency (free space)
  - -0.56dB average gain (free space)
  - 4.53dBi peak gain (free space)
- 7.125GHz
  - 5925MHz to 7125MHz frequency range
  - 81.8% efficiency (free space)
  - -0.90dB average gain (free space)
  - 5.53dBi peak gain (free space)
GW.53.A151
- 2.4GHz/5.8GHz band operation
- IP67 rated enclosure
- 8.5mm x 35.8mm dimensions
50Ω impedance rating
Linear polarization
Omnidirectional radiation pattern
-40°C to +85°C operating temperature range

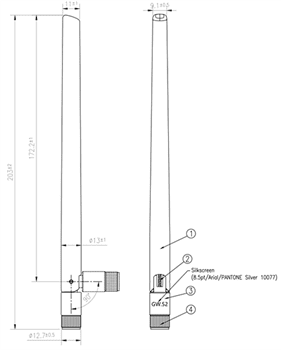

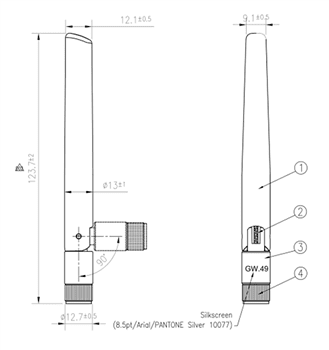

Mechanical Drawings

Chart - Taoglas GW IP67 Wi-Fi® 2.4/5.8/7.125GHz Terminal Antennas

Taoglas GW IP67 Wi-Fi® 2.4/5.8/7.125GHz Terminal Antennas

Features

Applications

Specifications

Mechanical Drawings
