Taoglas Accura Passive L1/L2 GNSS Antennas

Taoglas Accura Passive L1/L2 GNSS Antennas are compact, multiband directional antennas designed for high-precision GPS and BeiDou accuracy. The antennas feature an advanced wideband dual-stacked ceramic patch with optimized gain. The Taoglas Accura Passive L1/L2 GNSS Antennas cover the GPS L1/L2, GLONASS G1/G2, BeiDou B1, and Galileo E1 bands within a 25mm x 25mm x 8mm compact size. The antenna’s size makes it ideal for wearables, transportation, precision agriculture, navigation, security, and autonomous vehicle applications. The antennas provide a pin and adhesive mount connector and are RoHS/REACH compliant.

Features

Pin passive patch antenna
Pin and adhesive mount
RoHS/REACH compliant

Bands covered:
- GPS L1/L2
- GLONASS G1/G2
- BeiDou B1
- Galileo E1

Applications

Wearables
Transportation
Precision agriculture

Navigation
Security
Autonomous vehicles

Specifications

1217MHz to 1610MHz GNSS frequency range
47.9% to 56.2% efficiency
-3.20dB to -2.51dB average gain
3.08dBi to 3.44dBi peak gain
50Ω impedance rating

-40°C to +85°C operating temperature range
25mm x 25mm x 8mm dimensions
Directional radiation pattern
RHCP polarization
Ceramic material
18g weight

Mechanical Drawings

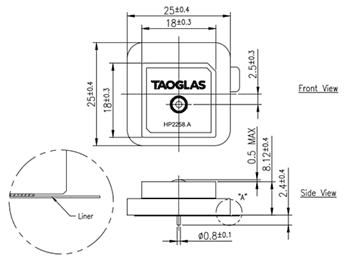

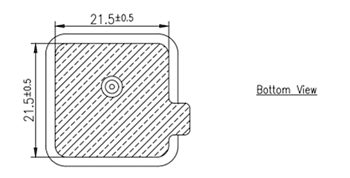

Mechanical Drawing - Taoglas Accura Passive L1/L2 GNSS Antennas
