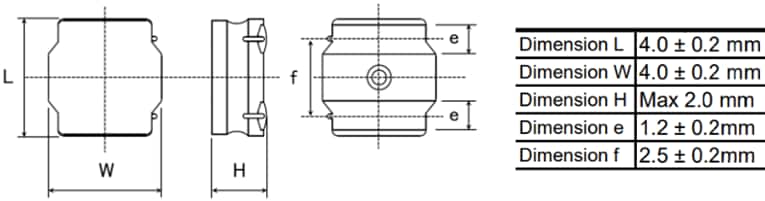

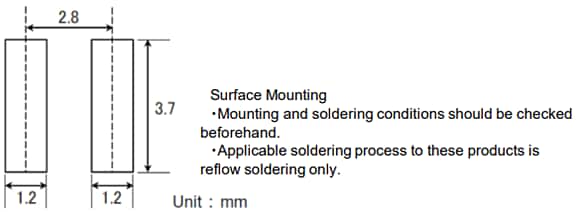

TAIYO YUDEN MCOIL™ LSDP Wire-Wound Metal Power Inductors are designed for use in general electronic equipment and feature a compact case size of 4mm x 4mm with a maximum height of 2mm. These surface-mount modules offer a 1μH to 10μH ±20% inductance range, 2A to 6.2A maximum current range, and 2A to 7A maximum saturation range. Additional specifications include 18mΩ to 172mΩ maximum DC resistance and 1MHz LQ measuring frequency. TAIYO YUDEN MCOIL LSDP Wire-Wound Metal Power Inductors operate in a -40°C to +125°C temperature range (including self-generated heat) and are suitable for reflow soldering only. The LSDP series is halogen free as well as RoHS and REACH compliant.
MCOIL is a registered trademark or trademark of TAIYO YUDEN CO., LTD. in Japan and other countries. The names of series noted in the text are excerpted from part numbers that indicate the types and characteristics of the products and therefore are neither product names nor trademarks.
