Taiwan Semiconductor TSM500N15CS 150V Power MOSFET

Taiwan Semiconductor TSM500N15CS 150V Power MOSFET is an N-channel MOSFET that features low RDS_(ON) to minimize conductive losses and low gate charge. This n-channel MOSFET is RoHS compliant and halogen-free. Applications include DC-DC converters, power routing, and motor drives.

Features

Low RDS_(ON) to minimize conductive losses
Low gate charge for fast power switching

RoHS compliant
Halogen-Free according to IEC 61249-2-21

Applications

DC-DC converters
Power routing

Motor drives

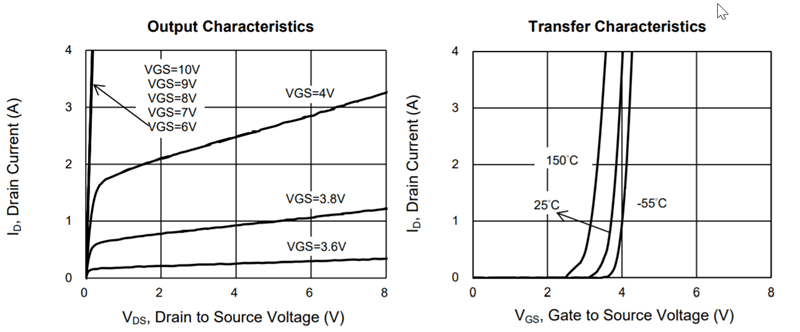

Performance Graph

Performance Graph - Taiwan Semiconductor TSM500N15CS 150V Power MOSFET

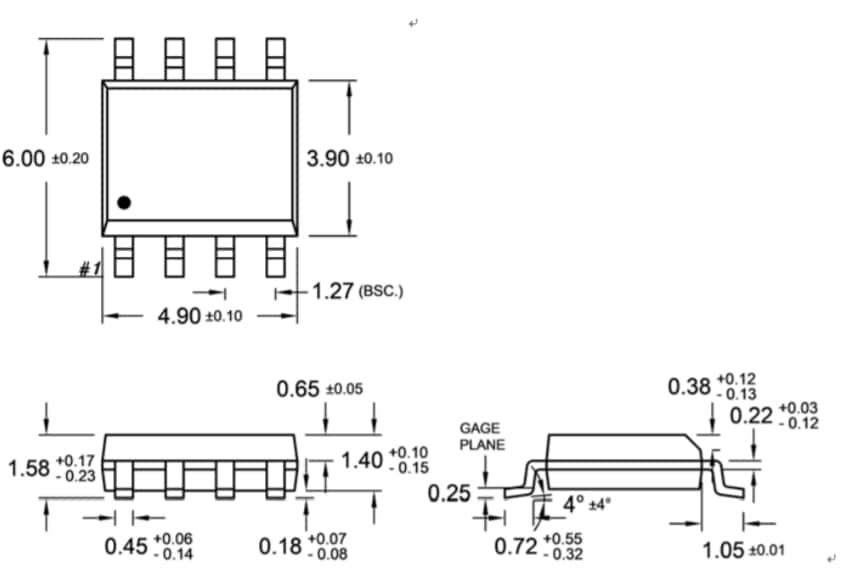

Mechanical Drawing

Mechanical Drawing - Taiwan Semiconductor TSM500N15CS 150V Power MOSFET
