Taiwan Semiconductor TSHA2101CQ Integrated AMR Magnetic Sensor

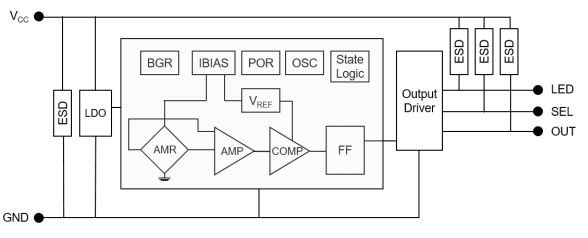

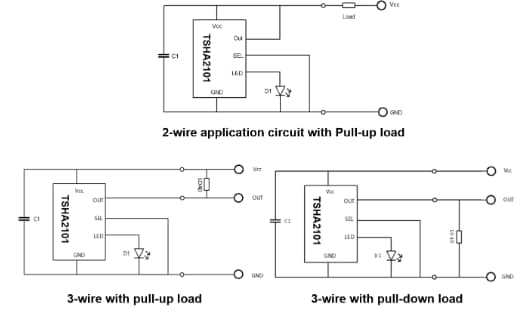

Taiwan Semiconductor TSHA2101CQ Integrated Anisotropic Magneto Resistance (AMR) Magnetic Sensor supports both 2-wire and 3-wire applications for cylinder position detection. This integrated AMR magnetic sensor transforms into a non-contact switch with low power consumption, high sensitivity, and high reliability when coupled with a magnet. The TSHA2101CQ magnetic sensor uses System-In-Package (SIP) technology that builds an AMR sensor and Application-Specific Integrated Circuit (ASIC) in one IC. This AMR magnetic sensor operates from a 3.3V to 30V supply voltage range and ≥4kHz operating frequency. Typical applications include packing machines, automation electronics equipment, semiconductor equipment, textile machinery, pull-up and pull-down load devices, and pneumatic drill machines.

Features

Omni-polar
3.3V to 30V supply volatge range
-30V reversed power supply protection
100μA maximum supply current
Operating frequency ≥4kHz
Output over-current protection

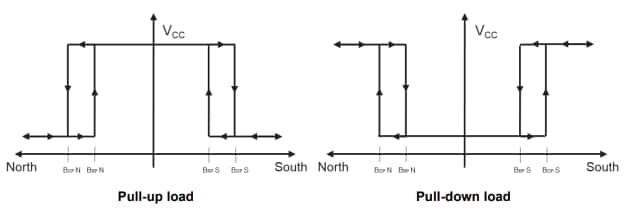

Open-drain output with self-adaptation of pull-up or pull-down load (equivalent loading ≤50kΩ @ 3-wire)
-40°C to 105°C operating temperature range
Moisture Sensitivity Level (MSL) 1 per J-STD-020
RoHS compliant
Halogen-free
