Taiwan Semiconductor S3JALH 600V Automotive Standard SMD Rectifier

Taiwan Semiconductor S3JALH 600V Automotive Standard Surface Mount Rectifier is AEC-Q101 qualified and housed in a low-profile package ideal for automated placement. The 3A S3JALH Rectifier has a 420V reverse voltage and a 50A surge peak forward current. The Taiwan S3JALH is suitable for freewheeling, snubber, and automotive applications.

Features

AEC-Q101 qualified
Glass passivated chip junction
Ideal for automated placement
Low profile package
Moisture sensitivity level: level 1, per J-STD-020
RoHS compliant

Halogen-free
Thin SMA package
Molding compound meets UL 94V-0 flammability rating
Terminals have matte tin-plated leads, solderable per J-STD-002
Meet JESD 201 class 2 whisker test
Polarity indicated by cathode band

Applications

Freewheeling
Snubbers

DC/DC converters
Automotive applications

Specifications

3A forward current
600V repetitive peak reverse voltage
420V reverse voltage, total RMS value

50A surge peak forward current
-55°C to +150°C junction and storage temperature

Typical Application

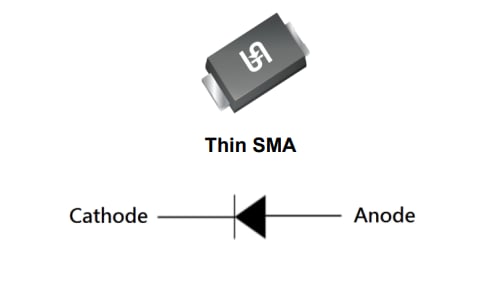

Application Circuit Diagram - Taiwan Semiconductor S3JALH 600V Automotive Standard SMD Rectifier
