Taiwan Semiconductor RS1xM Fast Recovery Surface Mount Rectifiers

Taiwan Semiconductor RS1xM Fast Recovery Surface Mount Rectifiers feature high surge current capability, low power loss, and high efficiency. The RS1xM provides 1A forward current and a 600V to 800V voltage range. The devices are housed in a compact Micro SMA single die package and are ideal for automated placement.

Features

Ideal for automated placement
Compact package size
High surge current capability
Low power loss, high efficiency
Moisture sensitivity level 1, per J-STD-020
RoHS Compliant

Halogen-free according to IEC 61249-2-21
Micro SMA package
Molding compound meets UL 94V-0 flammability rating
Matte tin plated leads, solderable per J-STD-002 terminal
Meet JESD 201 class 1A whisker test
Indicated by cathode band polarity

Applications

DC to DC converter
Switching mode converters and inverters
General purpose

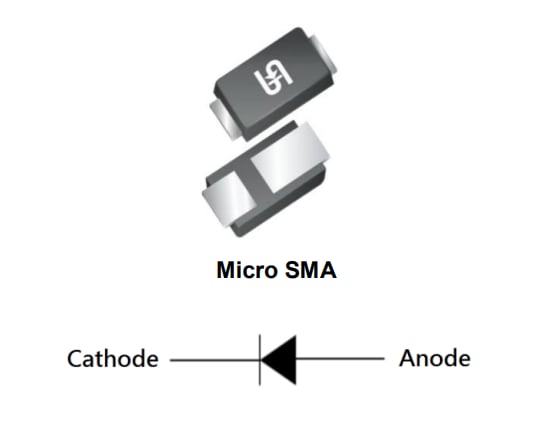

Package Style

Location Circuit - Taiwan Semiconductor RS1xM Fast Recovery Surface Mount Rectifiers
