Taiwan Semiconductor MBS2 to MBS10 Standard Bridge Rectifiers

Taiwan Semiconductor MBS2 to MBS10 200V to 1000V Standard Bridge Rectifiers are ideal for automated placement. The MBS2 to MBS10 rectifiers offer a high surge current capability, a 35A current, and a quad configuration. The Taiwan MBS2 to MBS10 standard bridge rectifiers are available in a TO-269AA package for SMPS, adapters, and lighting applications.

Features

AEC-Q101 qualified available
Ideal for automated placement
Reliable, low-cost construction utilizing a molded plastic technique
High surge current capability
UL Recognized File # E-326854
Moisture sensitivity level: level 1, per J-STD-020

RoHS Compliant
Halogen-free according to IEC 61249-2-21
TO-269AA (MBS) package
Molding compound meets UL 94V-0 flammability rating
Matte tin-plated leads, solderable per J-STD-002 terminals

Applications

Switching mode power supplies (SMPS)
Adapters
Lighting

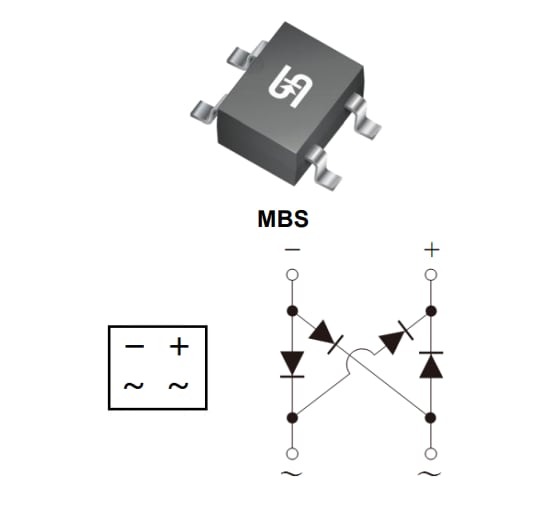

Package Style

Taiwan Semiconductor MBS2 to MBS10 Standard Bridge Rectifiers

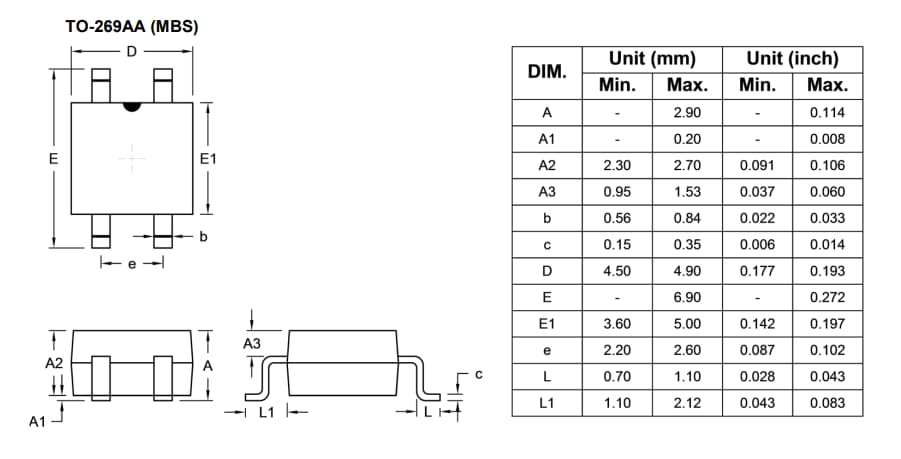

PACKAGE OUTLINE

Mechanical Drawing - Taiwan Semiconductor MBS2 to MBS10 Standard Bridge Rectifiers
