Taiwan Semiconductor 1K5SMPC12APH to 1K5SMPC51APH TVS

Taiwan Semiconductor 1K5SMPC12APH to 1K5SMPC51APH Transient Voltage Suppressors are AEC-Q101 qualified and ideal for automotive applications. The 1K5SMPC12APH to 1K5SMPC51APH TVS features a 1500W power dissipation and a 12V to 51V voltage range. The devices offer uni-directional polarity in a TO-277A package.

Features

AEC-Q101 qualified
Moisture sensitivity level 1, per J-STD-020
Meets IEC 61000-4-2 (Level: 4) / ISO 10605 (Level: L4)
Meets ISO7637-2 (Pulse 1/2a/2b/3a/3b)
RoHS Compliant
Halogen-free according to IEC 61249-2-21

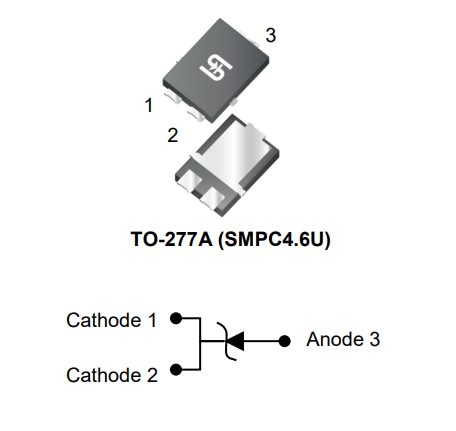

TO-277A (SMPC4.6U) Case
Molding compound meets UL 94V-0 flammability rating
Matte tin-plated leads, solderable per J-STD-002 terminal
Meet JESD 201 class 2 whisker test
Uni-directional polarity

Applications

Switching mode power supply (SMPS)
Motor for BLDC
Lighting application

Battery Management system
Automotive

Application Schematic

Application Circuit Diagram - Taiwan Semiconductor 1K5SMPC12APH to 1K5SMPC51APH TVS
