Swissbit Industrial PCIe BGA SSDs

Swissbit Industrial PCIe BGA SSDs leverage the 2.5″ SATA industry-standard form factor, connectivity, and support for AES encryption. The SSDs also support E2E security and TCG OPAL standards. The devices combine a SATA Gen3 controller and Triple-Level Cell (TLC) 3D NAND flash technology. The SSDs are a robust non-volatile storage solution for embedded storage applications.

Features

Dynamic and static wear leveling
Subpage mode flash translation layer (FTL)
Active data care management: adaptive read refresh
Lifetime enhancements
- Dynamic bad block remapping
- Write amplification reduction
On-board power fail protection
TRIM and NCQ support
ATA security feature set support
DEVSLP compatible
In-field firmware update

Enterprise-grade self-monitoring, analysis, and reporting technology (S.M.A.R.T.)
30µ inch gold-plated connector (IPC-6012B Class 2 compliant)
End-to-end (E2E) data protection
AES256 encryption (on request)
TCG OPAL 2.0 compliant (on request)
Life cycle management
Controlled “locked” BOM
RoHS-6 compliant
Swissbit life time monitoring (SBLTM) tool and SDK for SBLTM (on request)

Swissbit Industrial PCIe BGA SSDs

Features

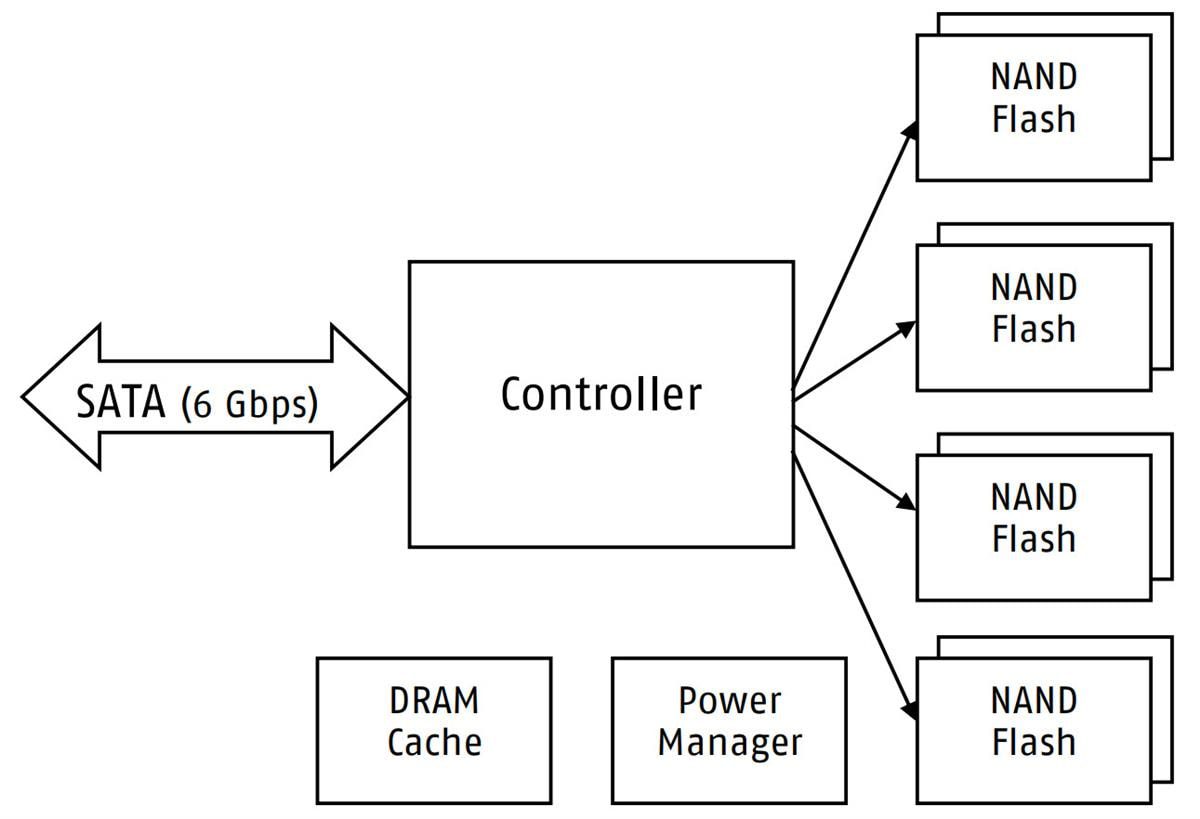

Block Diagram
