STMicroelectronics X-STM32MP-GNSS1 Expansion Board

STMicroelectronics X-STM32MP-GNSS1 Expansion Board features the Teseo-LIV3FL module for low-power, multi-constellation GNSS positioning. The STMicroelectronics X-STM32MP-GNSS1 interfaces with the STM32MP microprocessor via a 40-pin GPIO connector, supporting I²C, UART, and GPIO connections for various components. Compatible with STM32MP157F-DK2 and Raspberry Pi GPIO layouts, the board incorporates the Teseo-LIV3FL GNSS module for global navigation satellite system (GNSS) positioning across multiple constellations (GPS / Galileo / Glonass / BeiDou / QZSS). Additional components include the iNEMO ISM330DHCX inertial module with adjustable acceleration and angular rate ranges, the QVAR Embedded ILPS22QS digital barometer, and the IIS2MDC 3-axis digital magnetic sensor with high accuracy and ultra-low power consumption.

Features

Teseo-LIV3FL GNSS receiver
Onboard iNEMO inertial module for accelerometer and gyroscope
QVAR embedded pressure sensor for altitude measurement
Magnetometer for position accuracy
LEDs for PPS, power, and user
Keys for reset, wakeup, and user

External LNA (Low Noise Amplifier) and SAW filter for amplification of weak signals
EEPROM for automatic GPIO setup and driver setup
Compatible with both STM32MP157F-DK2 and Raspberry Pi’s GPIO connector
Applications include wireless connectivity

STMicroelectronics X-STM32MP-GNSS1 Expansion Board

Features

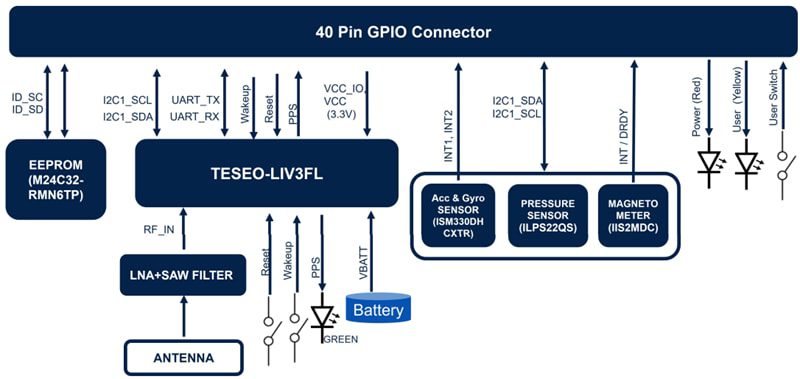

Block Diagram
