STMicroelectronics X-NUCLEO-OUT16A1 Expansion Board

STMicroelectronics X-NUCLEO-OUT16A1 Expansion Board is designed for STM32 Nucleo and evaluates the IPS8200HQ octal high-side smart power relay. The STMicroelectronics X-NUCLEO-OUT16A1 interfaces with the microcontroller via STISO620, STISO621, and Arduino R3 connectors. Using jumper settings, choose driving modes (Parallel or SPI) and communication protocols (8- or 16-bits).

Features

Based on the IPS8200HQ octal high-side switch, which features
- Operating range 10.5V to 36V
- Operating output current ≤ 0.7A
- Low power dissipation (R_ON(MAX) = 200mΩ)
- Undervoltage lock-out
- Selectable driving modes parallel or 5MHz SPI (8- or 16-bits)
- Embedded step-down converter
- 4×2 LED matrix for efficient status indication
- MCU freeze detection
- Fast decay for inductive loads
- Overload and overtemperature protections
- Loss of ground protection
- Junction Overtemperature and parity check diagnostic pin (FAULT)
- Case overtemperature diagnostic pin (TWARN)
- Supply voltage Level diagnostic pin (PGOOD)
- QFN48L 8mm x 6mm package

12V to 33V application board voltage operating range
Extended voltage operating range (J9 open) up to 36V
Up to 0.7A per channel operating current
Blue LED showing SPI mode selection
Yellow LED showing SPI mode 16-bit selection
Red LED for FAULT diagnostic pin (JP12 closed)
Red LED for PGOOD diagnostic pin (JP13 closed)
Red LED for TWARN diagnostic pin (JP27 closed)
Four kVPK galvanic isolation guaranteed by STISO620 and STISO621
Supply rail reverse polarity protection
Compatible with STM32 Nucleo development boards
Equipped with Arduino® UNO R3 connectors
RoHS and China RoHS-compliant
CE certified

Applications

Factory automation
Programmable Logic Controllers (PLC)

STMicroelectronics X-NUCLEO-OUT16A1 Expansion Board

Features

Applications

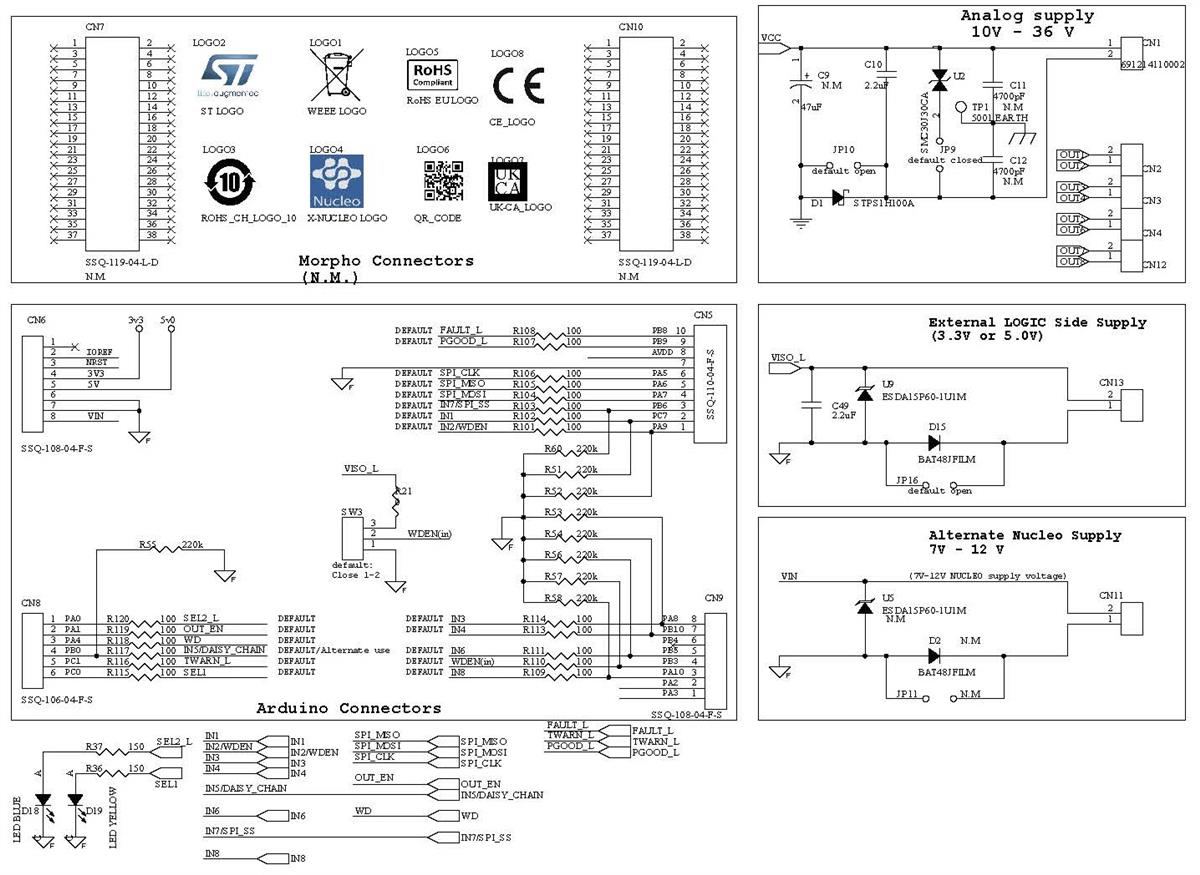

Schematic
