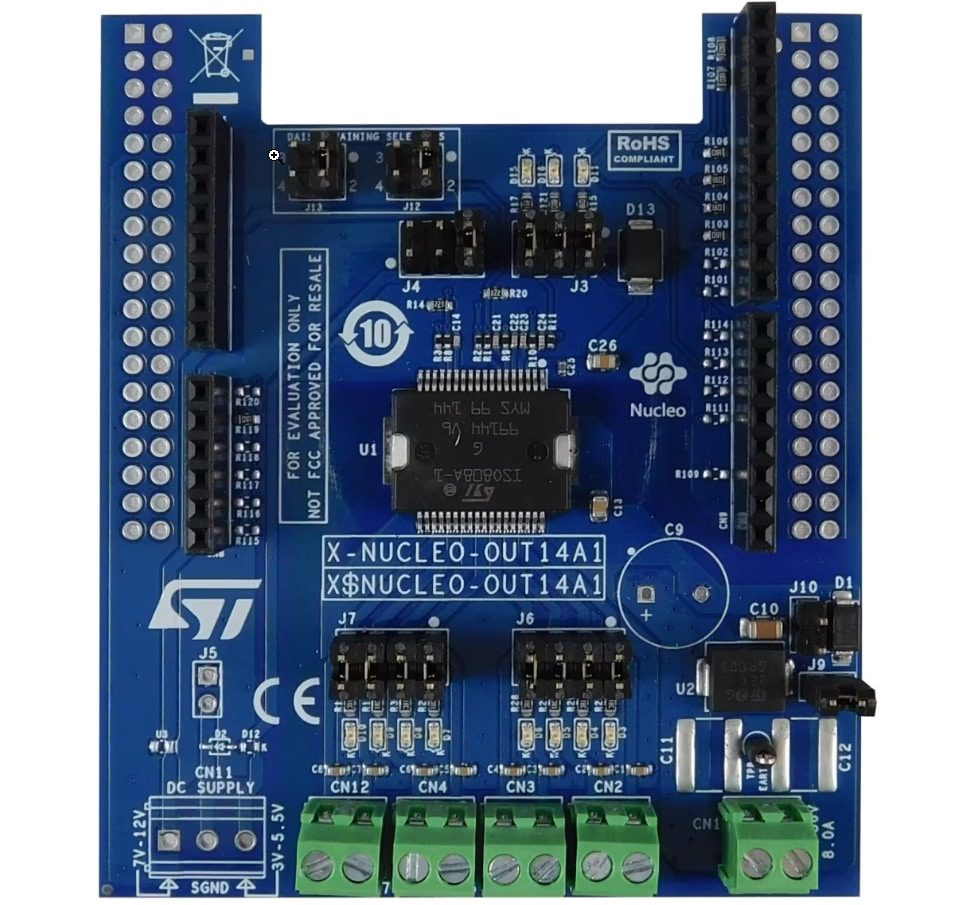

STMicroelectronics X-NUCLEO-OUT14A1 Expansion Board

STMicroelectronics X-NUCLEO-OUT14A1 Expansion Board is an industrial digital output expansion board based on the ISO808A-1 for STM32 Nucleo. The board offers a powerful and flexible environment to evaluate the ISO808A-1 octal high-side smart power solid-state relay. The ISO808A-1 features embedded galvanic isolation and a 20MHz SPI control interface in a digital output module connected to 1A industrial loads.

The STMicro X-NUCLEO-OUT14A1 expansion board directly connects with the microcontroller on the STM32 Nucleo driven by GPIO pins and Arduino® R3 connectors. The ISO808A-1 ensures galvanic isolation between the microcontroller and the process stage.

The expansion board can be interfaced with either a NUCLEO-F401RE or a NUCLEOG431RB development board. It is also achievable to evaluate a 16-channel digital output system allowing the daisy-chaining feature on two X-NUCLEO-OUT14A1 stacked expansion boards.

Features

Based on the ISO808A-1 octal high-side switch, which features:
- Operating range from 9.2V to 36V
- Low power dissipation (R_ON(MAX) = 260mΩ)
- Process side operating current of up to 1.0A per channel
- Embedded 2kV_RMS galvanic isolation
- PGOOD (VCC voltage level alarm signalization)
- 20MHz SPI with daisy chaining
- Fast decay for inductive loads
- Undervoltage lock-out
- Overload and overtemperature protections
- Loss of ground protection
- PowerSO36 package
Application board process side operating range of 10V (J10 open) to 33V (J9 closed)

Extended operating range of process side from 9.2V (J10 closed) up to 36V (J9 open)
Application board logic side operating voltage from 3.3V to 5V
Green LEDs for outputs on/off status (J6 and J7 close 1-2, 3-4, 5-6, 7-8)
Red LED for common overheating and communication error diagnostic (J3 close 1-2)
Red LED for PGOOD signalization (J3 close 3-4)
Yellow LED for output enable status signalization (J3 close 5-6)
Process and logic supply rails reverse polarity protections
Compatible with STM32 Nucleo development boards
Equipped with Arduino® UNO R3 connectors
RoHS and China RoHS compliant
CE certified
