STMicroelectronics X-NUCLEO-OUT10A1 Expansion Board

STMicroelectronics X-NUCLEO-OUT10A1 Expansion Board is designed for STM32 Nucleo and provides an affordable and easy-to-use solution for the development of 0.5A (Typ.) digital output modules. The X-NUCLEO-OUT10A1 Expansion Board features the IPS161HF single high-side switch with safe driving and smart diagnostic capabilities with industrial loads. The Expansion Board interfaces with the microcontroller on the STM32 Nucleo via 3kV optocouplers. These optocouplers are driven by GPIO pins and Arduino™ UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.

The STMicroelectronics X-NUCLEO-OUT10A1 Expansion Board needs to be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board and can be stacked with another XNUCLEO-OUT10A1 or an X-NUCLEO-OUT08A1. Two X-NUCLEO-OUT10A1 Expansion Boards allow the evaluation of a dual-channel digital output module with 0.5A (Typ.) capability each or a 0.5A (Typ.) single-channel safety digital output module.

Features

Based on IPS161HF single high-side switch, which features:
- Operation up to 60V/0.7A
- Low power dissipation (R_ON(MAX) = 120mΩ)
- Fast decay for inductive loads
- Open load detection and diagnostics
- Overload and overheating protections with thermal shut-down and cut-off
- PowerSSO-12L package
12 to 33V/0 to 0.7A Application board operating range
Extended voltage operating range (J1 open) up to 60V

Status and diagnostic LEDs
3kV galvanic isolation
Supply rail reverse polarity protection
Ready for safety digital output architecture
EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
Wide application development potential in STM32 Nucleo development environment
Equipped with Arduino™ UNO R3 connectors
CE certified
RoHS and China RoHS compliant

Applications

Industrial Safety
Industrial Tools

STMicroelectronics X-NUCLEO-OUT10A1 Expansion Board

Features

Applications

Videos

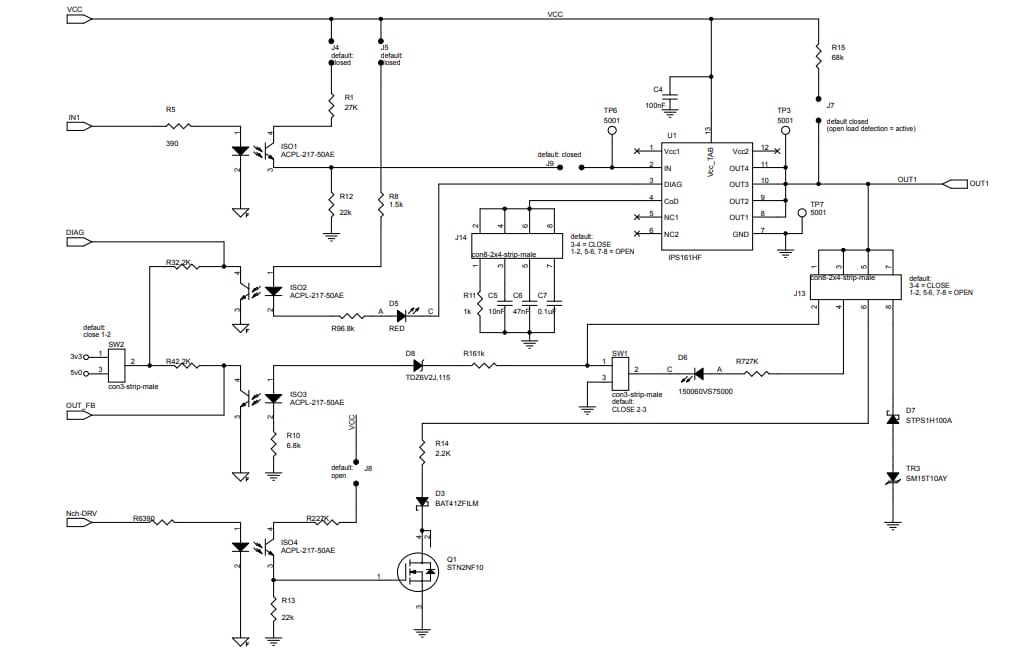

Circuit Schematic
