STMicroelectronics X-NUCLEO-IOD02A1 Expansion Board

STMicroelectronics X-NUCLEO-IOD02A1 Expansion Board is based on the L6364Q dual-channel SIO and IO-Link PHY device transceiver. The Board embeds 50mA 3.3V and 5.0 V voltage regulators, a DC-DC converter, and M-sequence management. The X-NUCLEO-IOD02A1 Expansion Board is an easy-to-use solution for developing SIO and IO-Link industrial sensor applications, ideal to evaluate the L6364Q communication features and robustness.

Communicating with the STM32 controller via SPI and GPIO pins, the STM X-NUCLEO-IOD02A1 Expansion Board is compatible with the Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors (when connected to a NUCLEOL073RZ or NUCLEO-G071RB development board).

In either Multi-byte and Single-byte modes, communication via IO-Link can be performed with SPI control of IC configuration and bidirectional sensor data transmission, or in Transparent mode with SPI control of the IC configuration and UART interfacing for bidirectional sensor data transmission.

Configuring the L6364Q and expansion board settings such as transmission mode and DC-DC converter enable/disable according to application requirements is convenient via the switches on the X-NUCLEO-IOD02A1 Board. An evaluation of comprehensive industrial sensor modules is also possible by connecting the X-NUCLEO-IOD02A1 to the X-NUCLEO-IKS02A1 sensor shield.

Features

Based on the L6364Q IO-Link device dual transceiver in QFN package with the following main characteristics:
- 2-channel (CQ and DIO) IO-Link PHY layer
- IO-Link DLL (M-sequence handler and checksum)
- Wake-up detection
- Interrupt diagnostic pin
- SPI and UART interfaces
- 50mA 3.3V and 5.0V linear regulators
- 50mA adjustable (5.0 ÷ 10.8V) buck converter
- Overload protection with adjustable intervention threshold
- Overheating protection with adjustable shutdown threshold
- Full reverse polarity on process side
- Ground and VCC wire break protections
- QFN-20L (4 x 4 x 0.9mm) package

5 to 35V operating voltage range
Red LED and green LED for status diagnostics
Radiated Emissions (EM Fields 30MHz-1GHz) <40dB µV/m
Immunity to conducted disturbance (150kHz-80MHz) ≤10V
Immunity to RF EM Fields (80MHz-1GHz) ≤10V/m
Immunity to RF EM Fields (1GHz-2.7GHz) ≤3V/m
Immunity to SURGE pulse (500Ω coupling) ≤±1.2kV
Immunity to ESD contact/air ≤±3kV
Immunity to BURST noise ≤±1kV
Compatible with STM32 Nucleo development boards
Equipped with Arduino UNO R3 connectors
RoHS and WEEE compliant

STMicroelectronics X-NUCLEO-IOD02A1 Expansion Board

Features

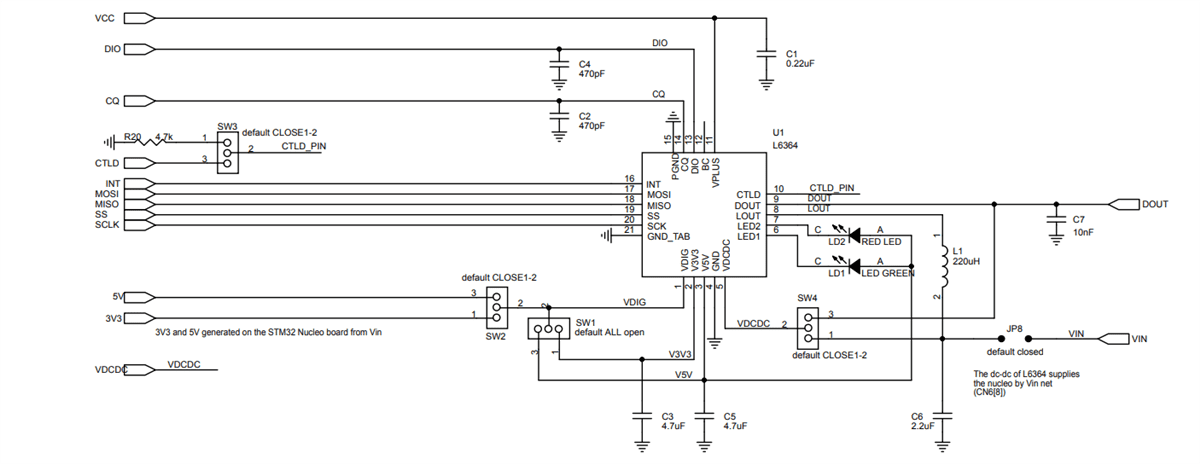

Circuit Schematic
