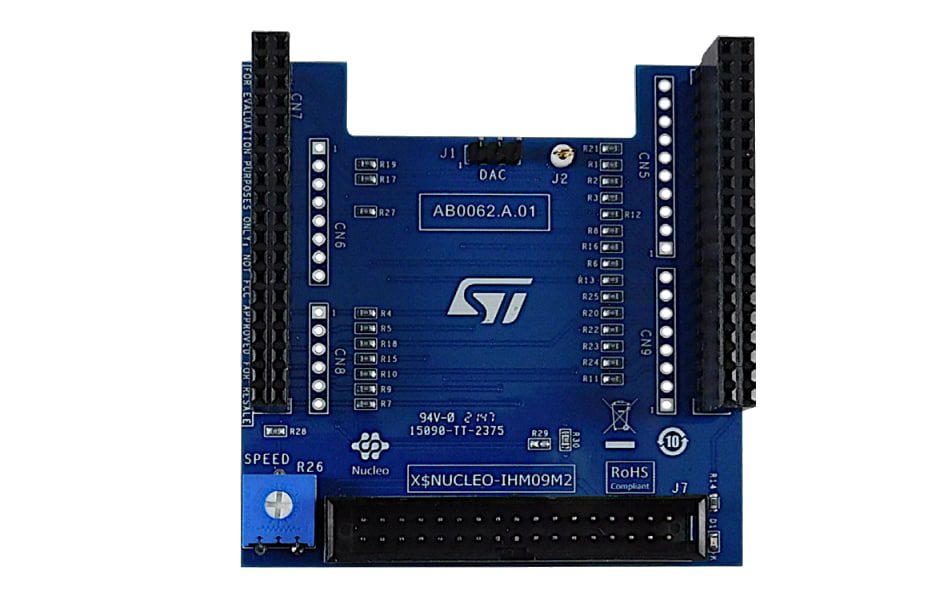

STMicroelectronics X-NUCLEO-IHM09M2 Expansion Board

STMicroelectronics X-NUCLEO-IHM09M2 Expansion Board allows an easy way to evaluate motor control solutions for three-phase motors. The X-NUCLEO-IHM09M2 is a motor control connector expansion board that connects the STM32 Nucleo development board with an external ST motor control power board via the ST morpho and motor control connector. The 34-pin motor control connector is compatible with many ST motor control power boards, requiring an external digital section (MCU) to drive a three-phase motor. The DAC connector supports the user code development and testing with easy access to the MCU peripherals.

A LED is provided for fault condition signaling or status indication.

Features

ST motor control connector (34 pins) compatible with most ST motor control power boards
STM32 Nucleo support, thanks to ST morpho connectors
Compatible with the six-step and FOC motor control firmware library by ST

Debug connector for DAC, GPIOs, and similar ones
Fully populated board with test points
LED for fault signaling or status indication
Available potentiometer
RoHS compliant

STMicroelectronics X-NUCLEO-IHM09M2 Expansion Board

Features

Layout

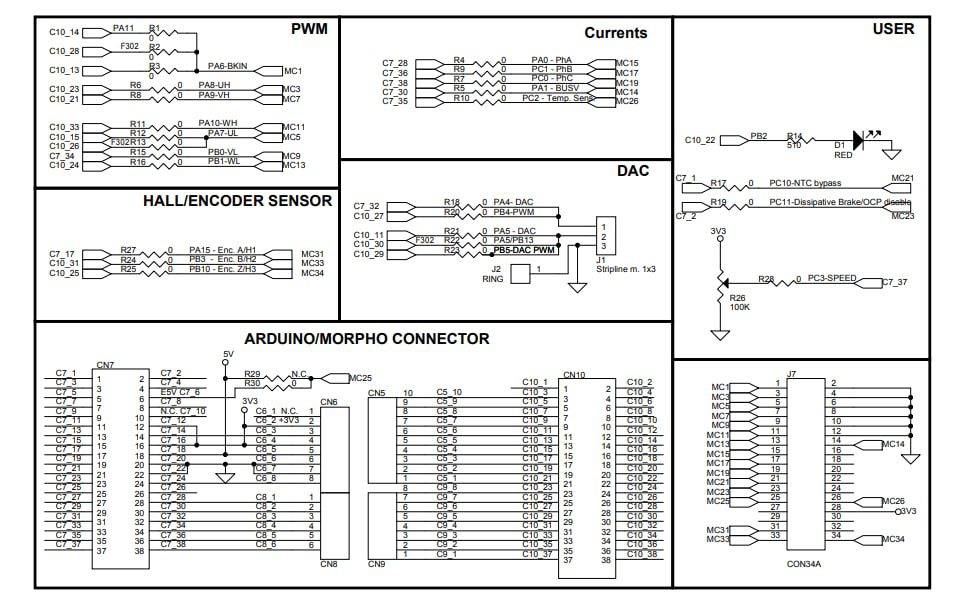

Circuit Schematic
