STMicroelectronics VL53L1-SATEL Breakout Boards

STMicroelectronics VL53L1-SATEL Breakout Boards are based on the VL53L1 Time-of-Flight (ToF) Proximity Sensor with multi-object detection. The VL53L1-SATEL Breakout Boards are designed to easily integrate the VL53L1 Proximity Sensor into custom applications. The Breakout Boards include a voltage regulator and level shifters, enabling them to be used in any application with a 2.8V to 5.0V supply.

The VL53L1-SATEL Breakout Boards feature a perforation, allowing the user to separate the section supporting the VL53L1 module for use in a 2.8V supply application using flying leads. This makes it easier to integrate the VL53L1-SATEL breakout boards into development and evaluation devices due to the small PCB size.

Features

Includes two breakout boards
Pre-mounted VL53L1 Time-of-Flight Sensor
- 4.9mm x 2.5mm x 1.56mm package
- True distance measurement independent of target size and reflectance
- Up to 400cm distance measurement

5.0V LDO Voltage Regulator, 2.8V output voltage
Bidirectional Voltage-Level Shifter
Divisible board enabling use as a mini PCB breakout board
Easy to integrate into custom applications

STMicroelectronics VL53L1-SATEL Breakout Boards

Features

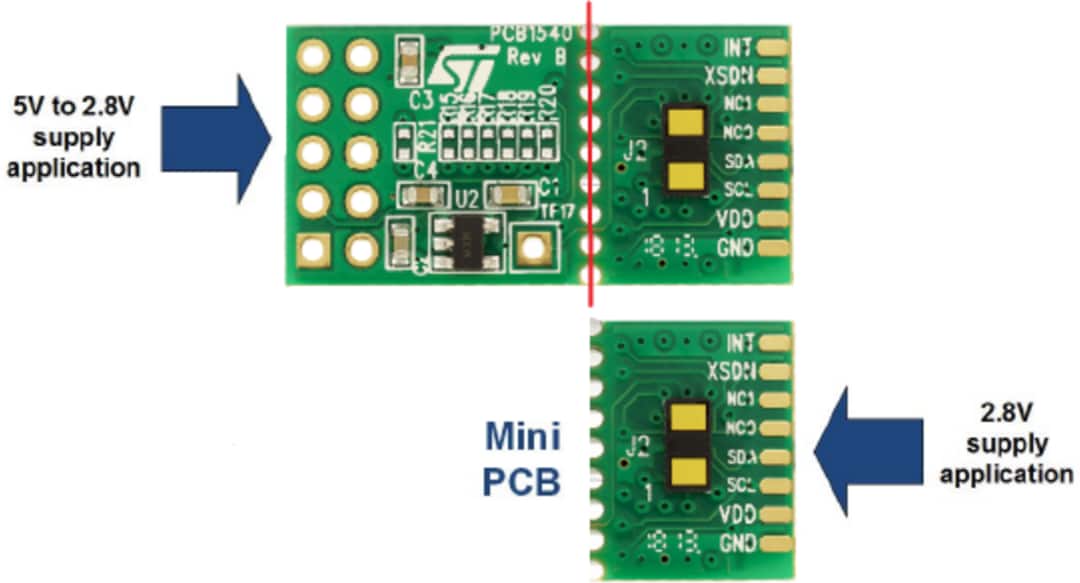

Board Layout
