STMicroelectronics TSV781 & TSV782 Unity-Gain-Stable Amplifiers

STMicroelectronics TSV781 and TSV782 Unity-Gain-Stable Amplifiers are 30MHz-bandwidth unity-gain-stable amplifiers. The TSV78x features a rail-to-rail input stage and a slew rate of 20V/µs. The amplifiers are ideal for low-side current measurement and operate from 2.0V to 5.5V with a single supply. The devices are fully specified on a load of 47pF for easy usage as an A/D converter’s input buffer. The TSV78x series offers rail-to-rail input and output, excellent speed/power consumption ratio, and 30MHz gain bandwidth product while consuming just 3.3mA at 5V.

Features

Gain bandwidth product 30MHz, unity gain stable
Slew rate 20V/µs
Low input offset voltage 50µV typ., 200µV max
2pA typ. low input bias current
Low input voltage noise density 7nV/√Hz @ 10kHz
2.0V to 5.5V wide supply voltage range
Rail-to-rail input and output

-40°C to +125°C extended temperature range
Automotive grade version available
Benefits
- Accuracy of measurement virtually unaffected by noise or input bias current
- Signal conditioning for high frequencies

Applications

High bandwidth low-side and high-side current sensing
Photodiode transimpedance amplification
A/D converter’s input buffers

Power management in solar-powered systems
Power management in HEV and EV

STMicroelectronics TSV781 & TSV782 Unity-Gain-Stable Amplifiers

Features

Applications

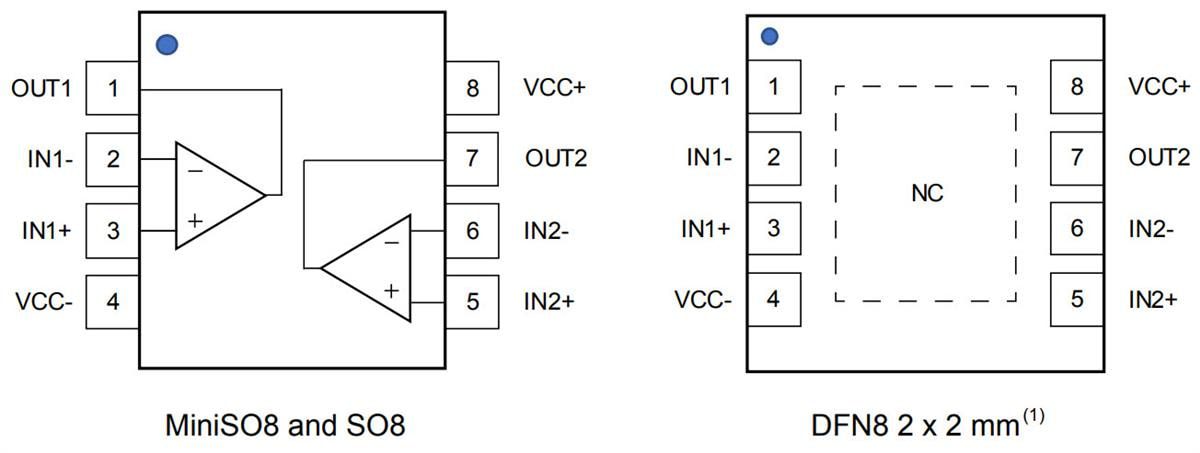

Pin connections
