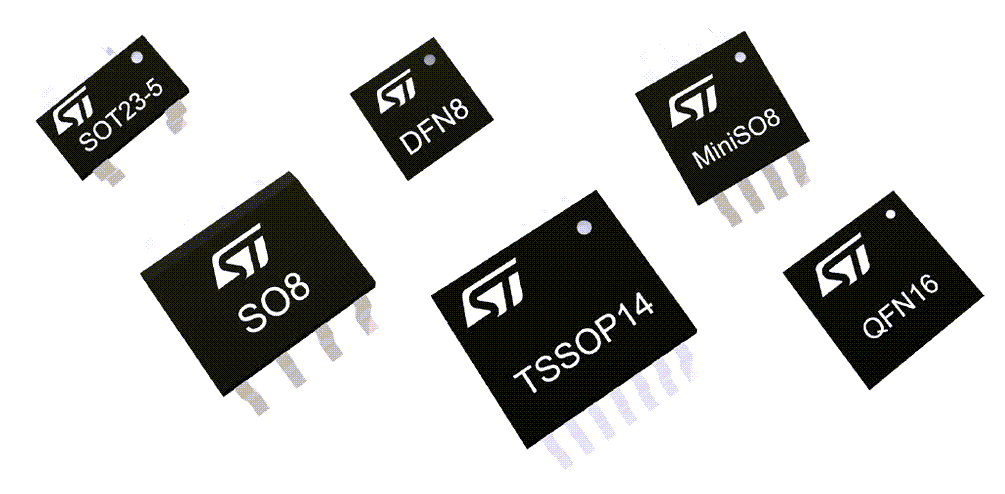

STMicroelectronics TSV771, TSV772, TSV774 5V Op Amps

STMicroelectronics TSV771, TSV772, and TSV774 are single, dual, and quad 20MHz-bandwidth unity-gain-stable amplifiers. The rail-to-rail input stage and the slew rate of 10.5V/µs make the TSV771, TSV772, and TSV774 ideal for low-side current measurement. The exceptional accuracy delivered by a maximum input voltage of 200µV allows amplifying accurately small-amplitude input signal.

Features

Gain bandwidth product 20MHz, unity gain stable
50µV typ., 200µV max. Low input offset voltage
2pA max. Low input bias current
7nV/√Hz Low noise
13V/µs Slew rate
2.0V to 5.5V Wide supply voltage range

Rail-to-rail input and output
4kV HBM ESD tolerance
-40°C to +125°C Extended temperature range
Automotive grade versions available
- Accuracy of measurement virtually unaffected by noise or input bias current
- Signal conditioning for high frequencies

Applications

High bandwidth low-side and high-side current sensing
Photodiode amplifiers
A/D converter input buffers

Power management in solar-powered systems
Automotive high bandwidth signal conditioning
Active filters

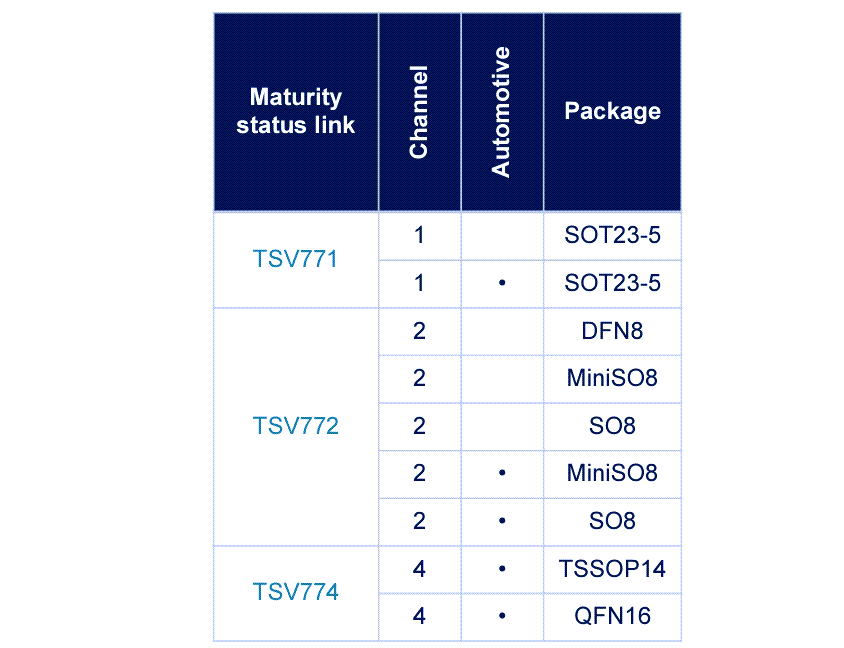

Chart - STMicroelectronics TSV771, TSV772, TSV774 5V Op Amps
