STMicroelectronics TSC2020 Bidirectional Current Sense Amplifiers

STMicroelectronics TSC2020 Bidirectional Current Sense Amplifiers are precision devices that sense current via a shunt resistor over a wide range of common-mode voltages, from -4V to +100V. The amplifiers sense very low drop voltages, minimize measurement error, and fully operate over a 2.7V to 5.5V supply voltage range and -40°C to +125°C industrial temperature range. TSC2020 components may be used for precision current measurement, overcurrent protection, current monitoring, and feedback loops.

Features

Wide -4V to 100V common-mode voltage range
High 100dB (minimum) common-mode rejection
±150µV maximum offset voltage
0.5µV/°C maximum offset drift
Enhanced PWM rejection
2.7V to 5.5V supply voltage range

20V/V internal fixed gain
0.3% maximum gain error
3.5ppm/°C maximum gain drift
SO8 and MiniSO8 package options
AEC-Q100 qualified

Applications

High-/low-side current sensing
Battery management systems
48V power distribution

48V power tools
Motor control
Automotive

STMicroelectronics TSC2020 Bidirectional Current Sense Amplifiers

Features

Applications

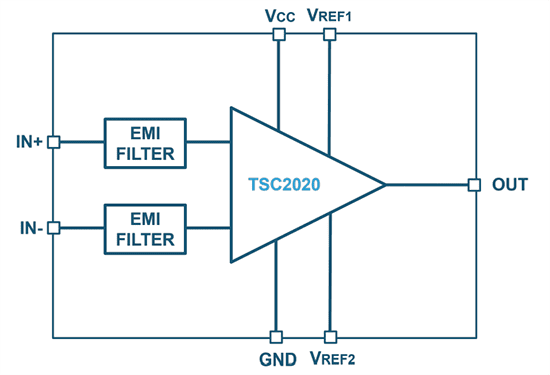

Block Diagram
