STMicroelectronics T2535T Triac

STMicroelectronics T2535T Triac is ideal for use in the on/off or phase angle control function in general purpose AC switching. Based on ST Snubberless technology, the 25A, 800V T2535T Triac offers high specified turn-off commutation and noise immunity levels up to 150°C. This device safely optimizes the control of motor and heater loads for even the most constraining environments of home appliances.

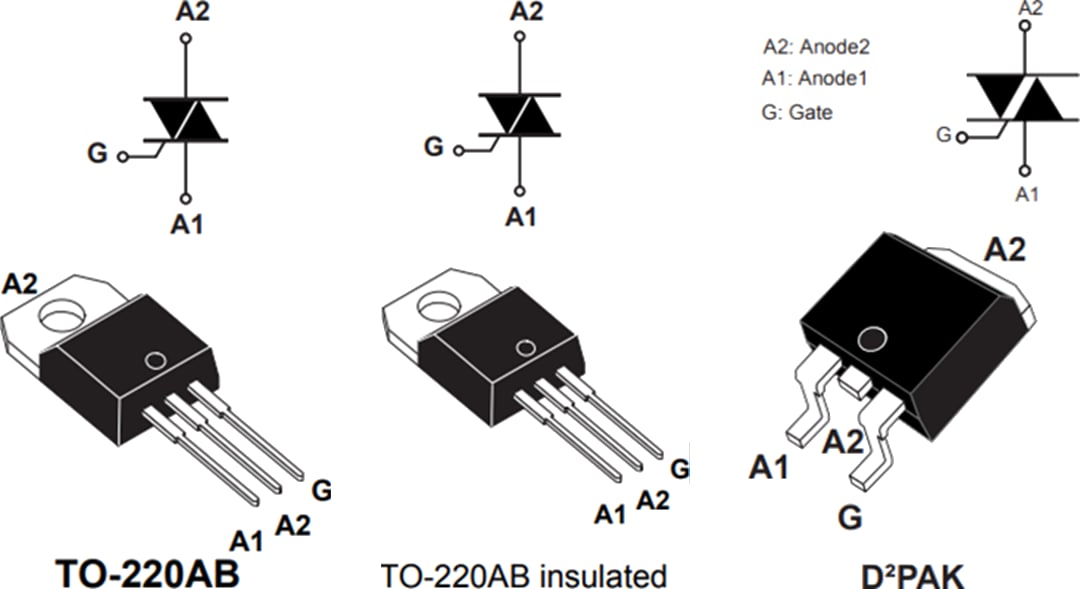

The STMicroelectronics T2535T Triac is offered in TO-220AB, TO-220AB insulated, and D²PAK packages.

Features

25A medium current Triac
Surge capability V_DSM, V_RSM = 900V
Three triggering quadrants
High noise immunity – static dV/dt

Robust dynamic turn-off commutation – (dI/dt)c
-40°C to +150°C junction temperature range (T_J)
ECOPACK2 compliant component
TO-220AB, TO-220AB (insulated), and D2PAK package options

Applications

General purpose AC line load control
AC induction and universal motor control
Water heaters
Power tools
Cookers and ovens

Lighting and automation
I/O control
Inrush current limiting circuits
Overvoltage crowbar protection
