STMicroelectronics STWLC98 Qi-Compliant Wireless Power Receiver

STMicroelectronics STWLC98 Qi-Compliant Inductive Wireless Power Receiver is ideal for applications supplying up to 70W output power. The chip is developed to support Qi specifications 1.2.4 and 1.3 for inductive communication protocol with Extended Power Profile (EPP) and proprietary ST Super Charge (STSC) protocol for fast charging.

The STWLC98 features an integrated low-loss synchronous rectifier and low drop-out linear regulator to achieve high efficiency with low power dissipation. Via the I²C interface, users can access and alter the configuration parameters for customized applications. The final configurations are stored in embedded Few Times Programmable (FTP) non-volatile memory and automatically retrieved at power-up.

The STWLC98 can also operate as a wireless transmitter up to 15W (coil dependent) chip-scale package. The low BOM count makes the device ideal for compact applications.

Features

Up to 70W output power
Up to 15W output power in Tx mode
Qi 1.2.4 and 1.3 compliant
Integrated 27V synchronous rectifier with ≥98% efficiency
ARC (Adaptive Rectifier Configuration) mode for spatial freedom
Low drop-out linear regulator with output current and input voltage loops
Programmable output voltage up to 20V in steps of 25mV
32bit, 64MHz ARM Cortex M3 core with 16KB FTP, 16KB RAM, and 80KB ROM

10-bit A/D converter
6x configurable GPIOs
I²C Slave, Master interface
High-speed SPI interface for external flash for design in
8-level ASK modulator, Enhanced FSK demodulator
Accurate, current sense system for Foreign Object Detection (FOD)
Coil Q-factor measurement for FOD in Tx mode
Overvoltage, overcurrent, and thermal protection
Flip chip 90 bumps (4.3mm x 3.9mm)

Applications

Smartphones, tablets, and laptops
Power banks and cordless power tools
Medical devices

STMicroelectronics STWLC98 Qi-Compliant Wireless Power Receiver

Features

Applications

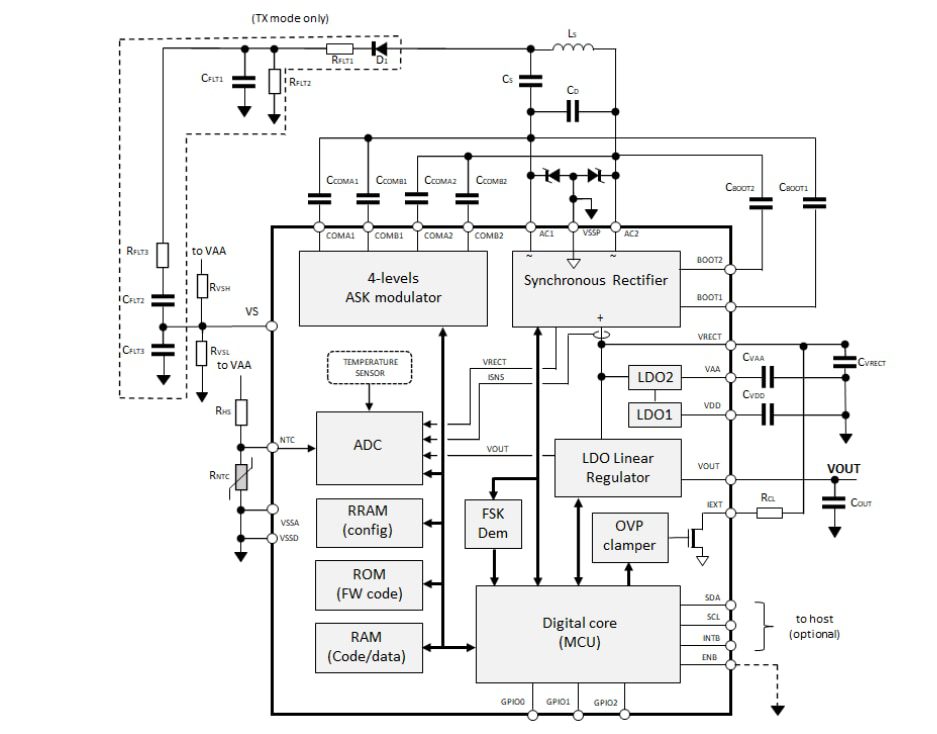

Block Diagram
