STMicroelectronics STSPIN32G025x 250V Three-Phase BLDC Controllers

STMicroelectronics STSPIN32G025x 250V Three-Phase BLDC Controllers are an integrated solution for driving three-phase applications. STMicroelectronics STSPIN32G025x has an embedded STM32G031x8x3 MCU and a 250V triple half-bridge gate driver. The controllers support N-channel power MOSFETs or IGBTs. The device includes a smartSD comparator for quick and effective overload and overcurrent protection. Integrated features include high-voltage bootstrap diodes, anti-cross-conduction, dead time, UVLO protection on both driving sections, and matched delays for distortion-free cycles.

Features

Three-phase gate drivers
- High-voltage rail up to 250V
- dV/dt transient immunity ±50V/ns
- Gate driving voltage ranges from 9V to 20V
Driver current capability
- 200/350mA source/sink current at +25°C (STSPIN32G0251)
- 1.00/0.85A source/sink current at +25°C (STSPIN32G0252)
32-bit Arm® Cortex®-M0+ MCU core
- Up to 64MHz clock frequency
- 8-Kbyte SRAM with hardware parity check
- 64-Kbyte flash memory with protection and securable area
- CRC calculation unit
Up to 32x general-purpose I/O ports (GPIO)
1x advanced timer for motor control, 16-bit with up to 6x PWM channels

5x general-purpose timers (1x 32-bit)
2x low-power timers
12-bit ADC converter (up to 15x channels) with 2MSps conversion rate
5-channel DMA controller with flexible mapping
Internal high-precision voltage reference
Full set of interfaces: 2x I²C, 2x SPI, 3x UART, and 1x low-power UART
Matched propagation delay for all channels
Integrated bootstrap diodes
Comparator for fast overcurrent protection
UVLO, interlocking, and deadtime functions
Smart shutdown (smartSD) function
Standby mode for low power consumption
On-chip debug support via SWD
-40°C to +125°C extended temperature range
QFN 10mm x 10mm 72L pitch 0.5mm creepage 1.8mm package

Applications

Three-phase motor drivers
Inverters
Industrial appliances and fans

STMicroelectronics STSPIN32G025x 250V Three-Phase BLDC Controllers

Features

Applications

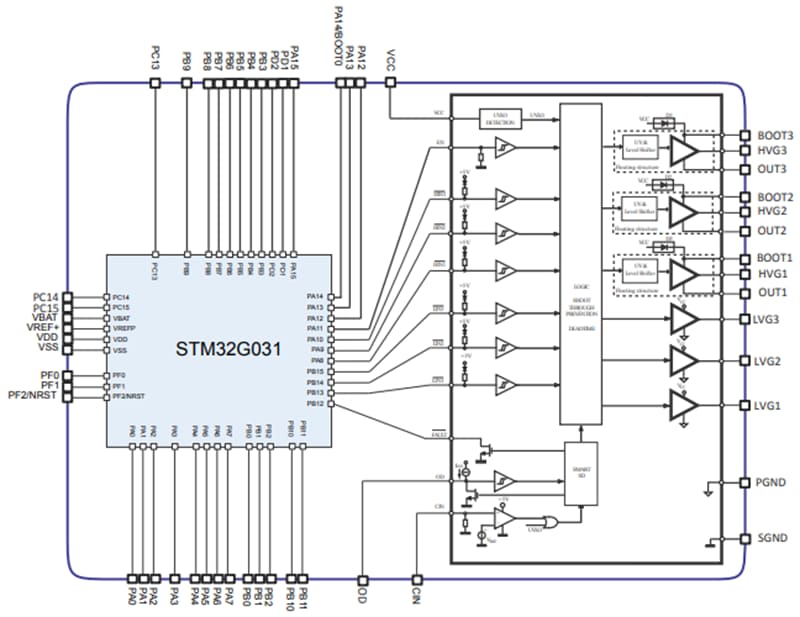

Block Diagram
