STMicroelectronics STPM066S PMICs

STMicroelectronics STPM066S PMICs are engineered for ADAS applications. The STPM066S multiple voltage regulators contain one battery-compatible BUCK pre-regulator, one BOOST, one LDO, and a precise voltage reference regulator. Each regulator features internal power switches. OTP (One Time Programmable) cells are implemented to program main device parameters (output voltages and currents, switching frequencies) and configure the power-up sequence. An SPI interface can enable or disable the single voltage regulators for diagnostic information and to program internal block parameters (monitor and Good Power thresholds, slew rate, etc.).

The STMicro STPM066S PMICs have features to support applications that need to fulfill functional safety requirements as defined by Automotive Safety Integrity Level (ASIL) A-B-C-D.

Features

AEC-Q100 qualified
Pre SMPS BUCK regulator, adjustable via OTP to 1.0V, 1.1V, 1.2V, 1.35V, 1.5V, 3.3V, 3.6V, and 5.0V at 1.35A/2.6A min peak current limit, 0.4MHz/2.4MHz
Post SMPS BOOST regulator, adjustable via OTP to 5.0V at 0.3A max load current, 7.0V at 0.2A max load current, 2.4MHz
Post Linear regulator LDO, adjustable via OTP to 1.2V, 1.25V, 1.3V, 1.8V, 2.5V, 2.8V, 3.3V, and 5.0V at 300mA/600mA max load current
Precise Voltage reference, adjustable via OTP to 1.8V, 2.5V, 3.3V, and 4.1V at 20mA max load current

SPI interface with CRC
Programmable slew rate/soft start
Voltage supervisors
Spread frequency spectrum
Reset and reset the sensitivity list
Adjustable window watchdog supervisors
Programmed power-up phase via OTP
Short circuit protected outputs and Fault detection pin to Microcontroller
Low external components number
Thermal shutdown junction temperature of +175°C

Applications

Automotive
- ADAS
- Chassis and Safety
- Electro Mobility

STMicroelectronics STPM066S PMICs

Features

Applications

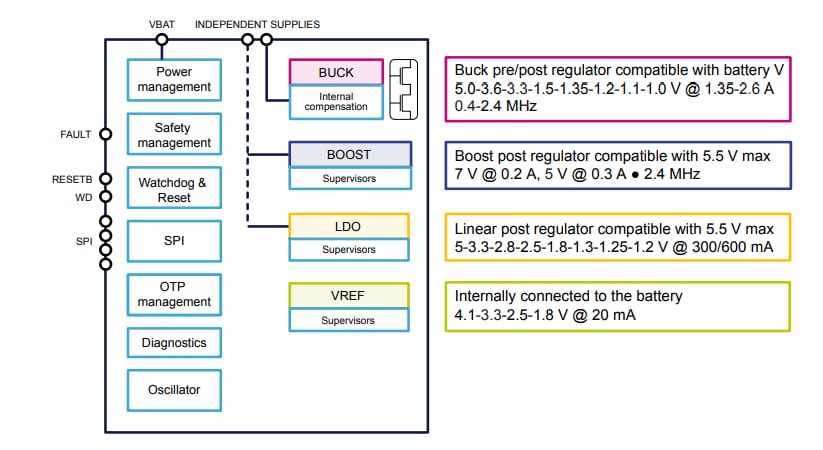

Block Diagram
