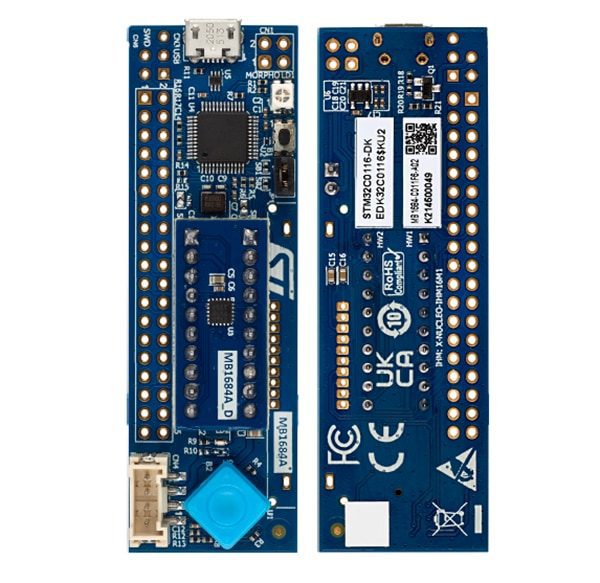

STMicroelectronics STM32C0116-DK Discovery Kit

STMicroelectronics STM32C0116-DK Discovery Kit is designed to demonstrate the features of the STM32C0 MCUs in a UFQFPN20 package. The STM32C0116-DK Kit includes one UFQFPN20 to DIL20 module based on the STM32C011F6 microcontroller and enables the user to develop and share applications. The device incorporates an onboard ST-LINK/V2-1 to debug and program the embedded STM32 microcontroller.

The STM STM32C0116-DK Discovery Kit plugs into a PC through a standard USB Type-A or USB Type-C® to Micro-B cable for operation.

Features

STM32C011F6 Arm® Cortex®‑M0+ core-based microcontroller with 32Kbytes of Flash memory and 6Kbytes of RAM, in a UFQFPN20 package
Individual STM32 UFQFPN20 to DIL20 module
Board connectors:
- USB Micro-B
- DIL20 socket
- Dedicated LCD footprint
- Grove (UART)
- 2x 10‑pin headers for MCU daughterboard
- Extension connectors

User LED
Reset push-button
5‑way joystick using a single ADC input pin
On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage and debug port
Comprehensive free software libraries and examples available with the STM32Cube MCU package
Support of a wide choice of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Required Equipment

Multi‑OS support of Windows® 10, Linux® 64-bit, or macOS®
USB Type-A or USB Type-C® to Micro-B cable
