STMicroelectronics STISO620 Dual-Channel Digital Isolator

STMicroelectronics STISO620 Dual-Channel Digital Isolator is based on the ST thick oxide galvanic isolation technology. The device provides two independent channels in the same direction with Schmitt trigger input, providing robustness to noise and high-speed input/output switching time.

Features

Dual channel digital isolator with 2 – 0 channel directionality
High data rate up to 100Mbps
Wide T_amb range operation:- 40ºC to 125ºC
High common-mode transient immunity
From 3V to 5.5V supply levels
Available in 8-pin SOIC narrow-body

Low power consumption
Pulse width distortions < 3ns
Galvanic isolation
Safety and regulatory approvals
- UL1577 certified (V_ISO = 4kV pk), file number: E362869

Applications

Optocoupler replacement in industrial application
Industrial field bus isolation

Battery monitor and motor drive
Size-critical multichannel isolation

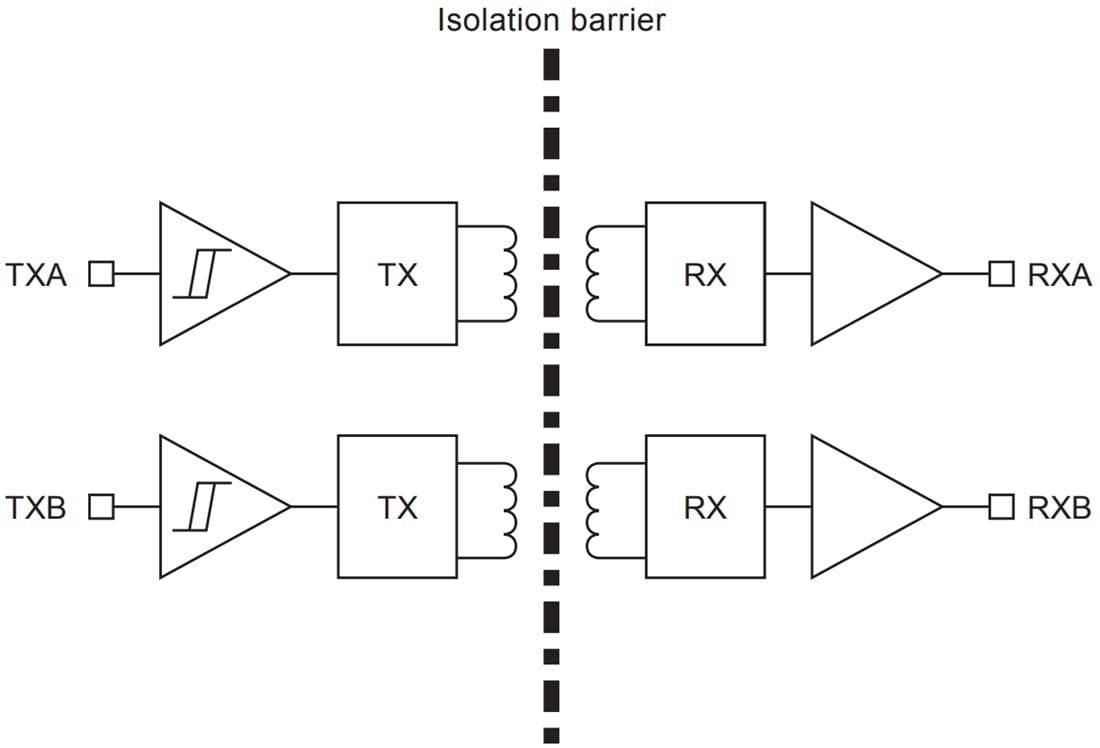

Block Diagram

Block Diagram - STMicroelectronics STISO620 Dual-Channel Digital Isolator
