STMicroelectronics STEVAL-LLL010V1 Evaluation Kit

STMicroelectronics STEVAL-LLL010V1 Evaluation Kit is comprised of a two-sided LED panel board and a separate control board with MCU and several user interface buttons.

On each side of the LED board, there is an embedded LED8102S 8-channel LED driver IC. On one side of the board is an array of four independent white LEDs, while on the other side is a pair of three RGB LEDs in series. The control board mounts several switches for manual control of LED brightness (white) and color (RGB).

An STM32F042 microcontroller is included to run LED control demonstration firmware. The firmware allows users to evaluate further the functionality of the featured LED8102S LED driver and develop custom applications. The entire STM STEVAL-LLL010V1 Evaluation Kit is powered through a USB mini connector on the control board.

Features

Double-sided LED board providing choice of white LED or RGB LED operation
Full LED color temperature control thanks to 8-channel LED8102S LED driver
Direct push button ON/OFF and dimming control
STM32 MCU with firmware including demonstrative LED sequences

Dedicated PWM signal for brightness and dimming management
CE Certified
RoHS and China RoHS compliant
WEEE compliant (2012/19/UE RAEE II)

Applications

Human Machine Interface
LED Lighting & controls

STMicroelectronics STEVAL-LLL010V1 Evaluation Kit

Features

Applications

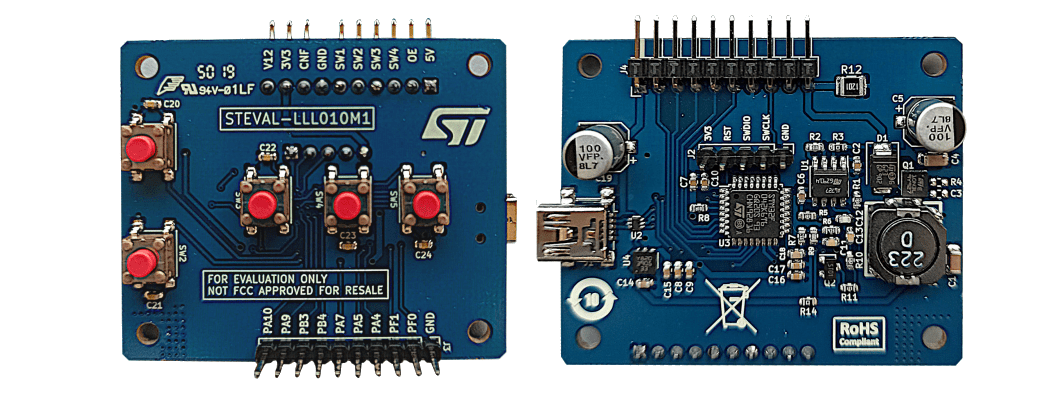

Control Board Top & Bottom View

LED8102S & white LED scheme

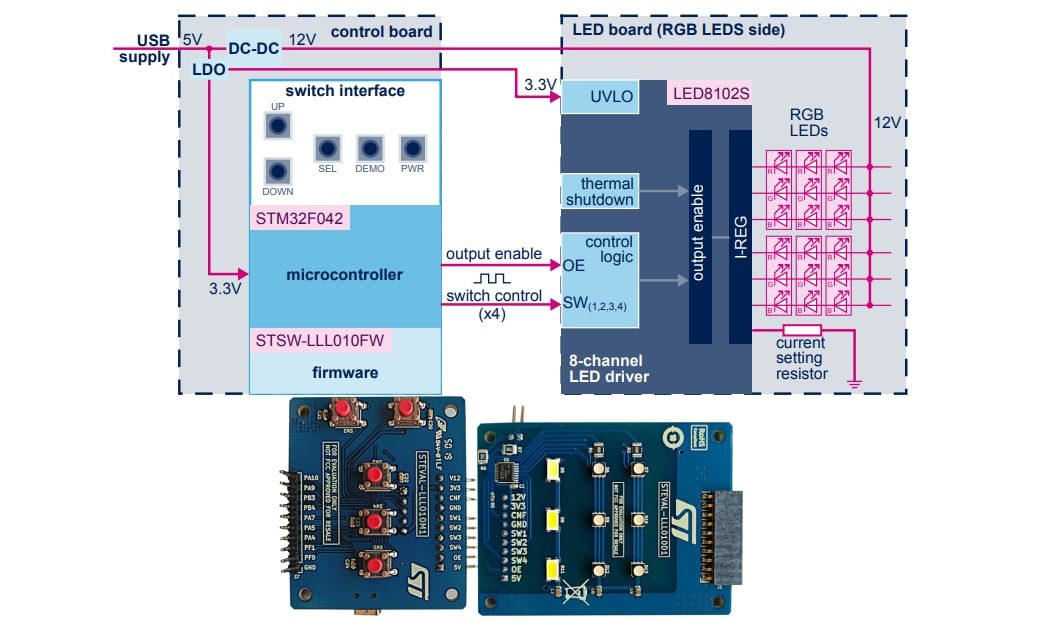

LED8102S & RGB LED scheme
