STMicroelectronics STEVAL-IFP046V1 Expansion Board

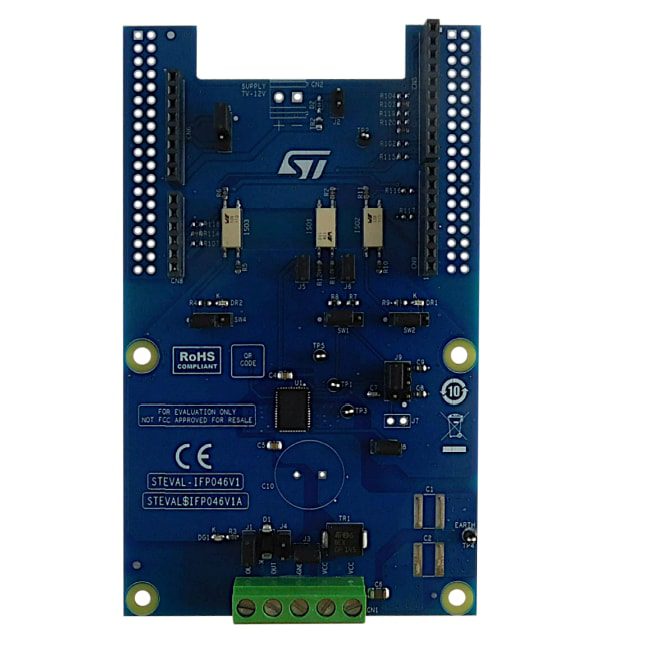

STMicroelectronics STEVAL-IFP046V1 Expansion Board is an industrial digital output expansion board for the IPS1025H-32. The IPS1025H-32 single high-side smart power solid state relay can be evaluated in a digital output module connected to 5.7A industrial loads. The STEVAL-IFP046V1 board interfaces with the microcontroller on the STM32 Nucleo through 5kV optocouplers driven by GPIO pins and Arduino R3 connectors.

The STM STEVAL-IFP046V1 Expansion Board connects to either a NUCLEO-F401RE or a NUCLEOG431RB development board. The STEVAL-IFP046V1 evaluates a system composed of up to four stacked STEVALIFP046V1 expansion boards. For example, a system with four STEVAL-IFP046V1 expansion boards allows users to assess a quad channel digital output module.

Features

Based on the IPS1025H-32 single high-side switch, which features:
- Operating range up to 60V
- Low-power dissipation (R_ON(MAX) = 25mΩ)
- Fast decay for inductive loads
- Smart driving of capacitive loads
- Undervoltage lock-out
- Overload and overtemperature protections
- QFN48L 8mm x 6mm package
8V to 33V/0A to 5.7A Application board operating range

Extended voltage operating range (J3 open) up to 60V
Green LED for output on/off status
Red LEDs for overload and overheating diagnostics
5kV galvanic isolation
Supply rail reverse polarity protection
Compatible with STM32 Nucleo development boards
Equipped with Arduino UNO R3 connectors
CE certified
RoHS and China RoHS compliant
Not FCC approved for resale
