STMicroelectronics STEVAL-AETKT1V2 Evaluation Kit

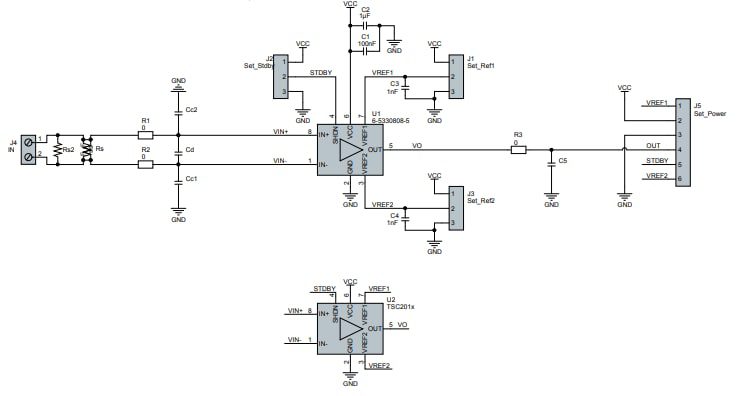

STMicroelectronics STEVAL-AETKT1V2 Evaluation Kit represents a bidirectional current sense amplifier with high side or low side sense resistor. This kit comprises of main and individual daughter boards for the TSC2011, TSC2010, and TSC2012 high-voltage, bidirectional, and current sense amplifier ICs. The STEVAL-AETKT1V2 eval kit features -20V to 70V wide common-mode voltage range and 2.7V to 5.5V supply voltage range. This evaluation kit offers 20µA quiescent current in shutdown mode, ±200µV maximum offset voltage, and -40°C to 125°C operating temperature range. Typical applications include automotive motor control, electromobility, factory automation, and industrial power and tools.
