STMicroelectronics STEVAL-A6986IV2 Iso-Buck Converter Eval Board

STMicroelectronics STEVAL-A6986IV2 Iso-Buck Converter Eval Board allows users to evaluate the A6986I automotive 38V, 5W synchronous iso-buck converter for isolated applications. The STEVAL-A6986IV2 Board’s primary output voltage can be accurately adjusted, whereas a transformer generates the isolated secondary output. No optocoupler is required. The primary sink capability (Typ. 1.9A) allows a proper energy transfer to the secondary side and enables a tracked soft-start of the secondary output.

The STM STEVAL-A6986IV2 Iso-Buck Converter Evaluation Board generates an isolated voltage (around 5V, easily adjustable), especially suitable for applications requiring a single isolated supply.

Features

AEC-Q100 qualified
-40°C to 135°C for T_j operating temperature range
Designed for iso-buck topology
4V to 38V operating input voltage
Primary output voltage regulation
No optocoupler required
1.9A typical sink peak primary current capability
Peak current mode architecture in forced PWM operation

300ns blanking time
8µA IQ-SHTDWN
Adjustable fSW and synchronization
Embedded primary output voltage supervisor
Adjustable soft-start time
Internal primary current limiting
Overvoltage protection
R_{DS(on) HS} = 180mΩ, R_{DS(on) LS} = 150mΩ
Thermal shutdown

STMicroelectronics STEVAL-A6986IV2 Iso-Buck Converter Eval Board

Features

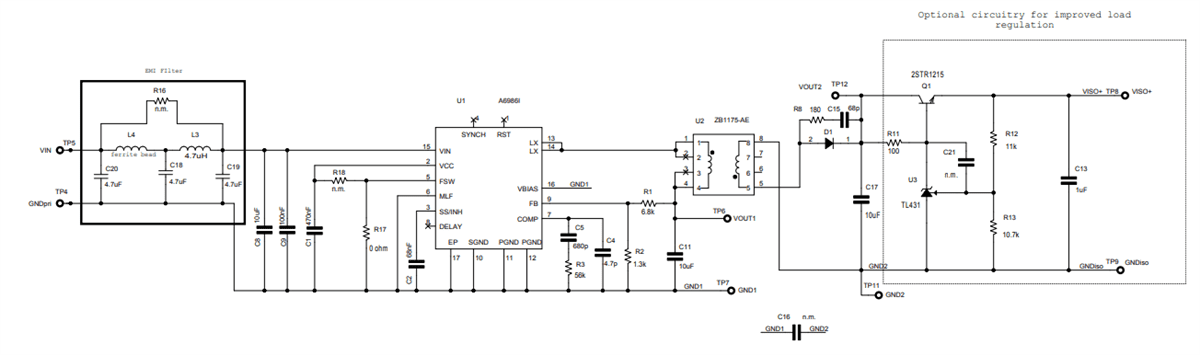

Schematic
