STMicroelectronics ST25RU3993-HPEV RAIN® (UHF) RFID Reader System

STMicroelectronics ST25RU3993-HPEV High-power RAIN^® (UHF) RFID Reader System allows the user to evaluate the properties and the features of ST25RU3993. The ST25RU3993 High-Performance NFC/RFID Readers are HF and NFC reader solutions that reduce design complexity and cost.

The ST25RU3993-HPEV High-power RAIN^® (UHF) RFID Reader System combines a high RF power and a low RF power RFID reader on a single PCB. The ST25RU3993-HPEV board is outfitted with several easy-to-access test points and measurement possibilities. The ST25RU3993-HPEV is controlled by a graphical user interface (GUI) running on a host PC. The corresponding interface is a USB / UART bridge (requires driver installation).

The board supports tuning the radio frequency from 840 to 960MHz and provides two SMB (male) antenna connectors controlled via the GUI. Connecting a suitable 50Ω UHF antenna for the targeted frequency range enables scanning for RAIN RFID transponders.

Features

Based on ST25RU3993, a RAIN® (UHF) RFID reader IC, featuring:
- ISO/IEC 18000-63:2015 / Gen2V2
- GB/T 29768-2013
- External and internal SW-controlled power amplifier (PA) options (30dBm and 17.5dBm maximum TX power, respectively)
- Configurable TX power level
- Power detector to monitor TX power
- Automatic carrier cancellation for improved RX sensitivity
- Differential RX input
- RX sensitivity of -80dBm at 90% read success for one sideband of tag response (ISO18046-3: 2012), -77dBm at 90% read success for both sidebands of tag response (ISO18046-3: 2020)
- Adaptive / manual RX gain adjustment
- Tunable radio frequency (from 840MHz to 960MHz), 25kHz minimum step
- External frequency reference (20MHz) assembly option
- Adaptive / manual anti-collision slot options
- Continuous wave or Modulated RF output test modes
- Two antenna ports- SMB (M), with automatic / manual antenna port switching
- Carrier sense TX option (LBT)
- UHF Tag RSSI measurement
- Configurable SELECT command mask
- UHF transponder EPC Read / Write
- Transponder read based applications trigger
- Custom reader TX command editor tool
- Customizable Gen2 TX commands
- Direct TX modulation through MCU for proprietary protocol support
- Store / Recall reader configuration
- Register map
- Buzzer
Host interface and supply
- USB/UART bridge
- Micro, B-Type USB receptacle
- Main supply of 6V DC jack
Controlled by STM32L476RGT6 MCU
LED indicators, test points and buttons for easy debug/use

STMicroelectronics ST25RU3993-HPEV RAIN® (UHF) RFID Reader System

Features

Standard connection setup

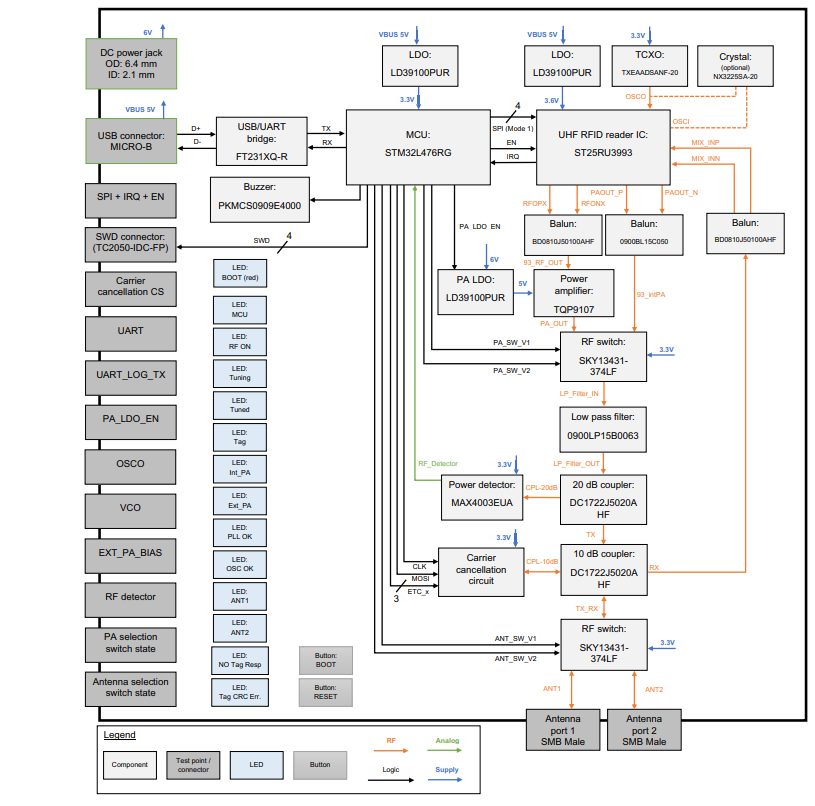

Functional diagram
